Long Service Life Thin Blade Slice Scorer Corrugated Cardboard Cutting Machine for Style

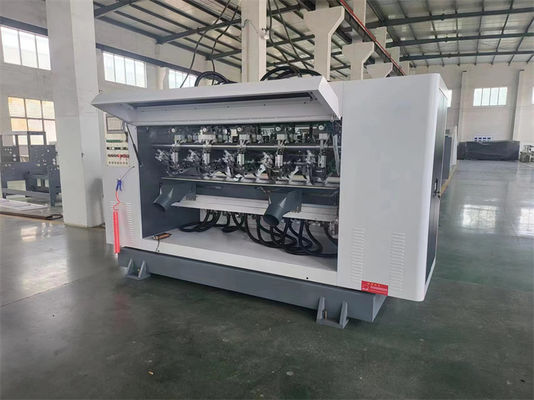

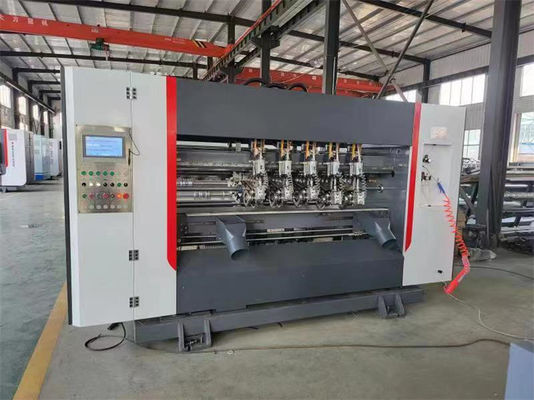

Large Image : Long Service Life Thin Blade Slice Scorer Corrugated Cardboard Cutting Machine for Style

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$21,400.00 - $25,700.00/sets
Packaging Details:	Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake in the container.
Supply Ability:	5 Set/Sets per Month

Contact Now

Long Service Life Thin Blade Slice Scorer Corrugated Cardboard Cutting Machine for Style

Description

Type:	Packaging Line	Applicable Industries:	Food & Beverage Factory, Farms, Other
Showroom Location:	Pakistan, Russia	Condition:	New
Application:	Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco	Packaging Type:	Cartons
Packaging Material:	Paper	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V/50HZ
Dimension(LWH):	283012602000(mm)	Weight:	2500 KG
Warranty:	2 Years	Key Selling Points:	Long Service Life
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	2 Years	Core Components:	Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Max Slitting Size:	1800-2200mm	Min Slitting Size:	2250
Min Scorer Width:	130mm	Scorer Height:	0-12mm
Blade Size:	260*158	Blade/scorer:	4/6 ,5/8 ,6/10 ,7/12
Machine Dimension:	283012602000(mm)/313012602000(mm)/333012602000(mm)	Power:	10KW
Product Name:	Thin Blade Slitter Scorer Machine	Port:	Tianjin Port

Product Description

NC Slitter scorer

Product overview:As an important equipment of corrugated cadres,Complete the high quality of creasing and precise cutting.orders can be changed quickly with two machines.

Function and characteristic: 1.The space between slitting blades is automatic adjusted,automatic locking,improve work efficiency. 2.Using the synchronous belt transmission,low noise. 3.Taiwan colorful touch screen,simple operation. 4.Adopt computer control automatic or manual grinding. 5.The control system is composed of high performance and double frequency converter,energy saving,stable and reliable. 6.Keep the synchronous speed with the production line automatically. 7.Patent type passive grinding,compact structure,can work while sharpening,improve work efficiency.

Specification

Model	1800	2200
Max slitting size（mm）	1850	2250
Min slitting size（mm）	130
Min scorer width（mm）	0 mm
Scorer height（mm）	0-12
Blade size（mm）	200*122
Blade/scorer	4/6 ,5/8 ,6/10,7/12
Machine dimension	283013002000(mm)	313013002000(mm)
Power	12kw	15kw
Speed	150m/min
Order change time	1-5S

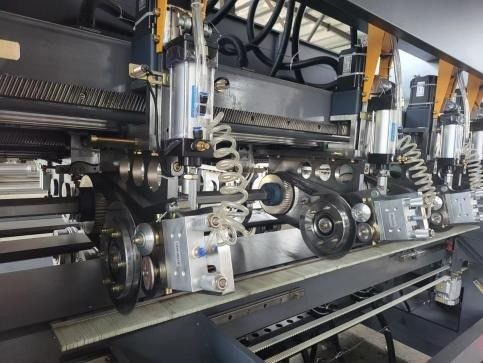

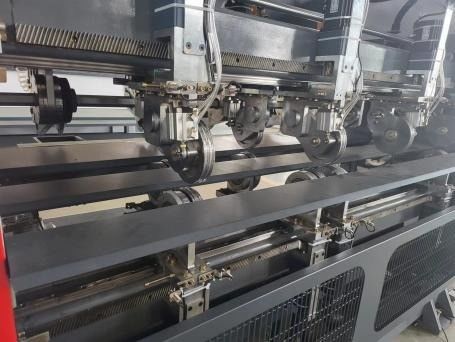

Product Detials

The space between slitting blades is electrically adjusted,automatic locking,improved working efficiency.

Alloyed steel thin-blades,sharp and long life of over 800 million meters,auto sharpening.automatic grinding.

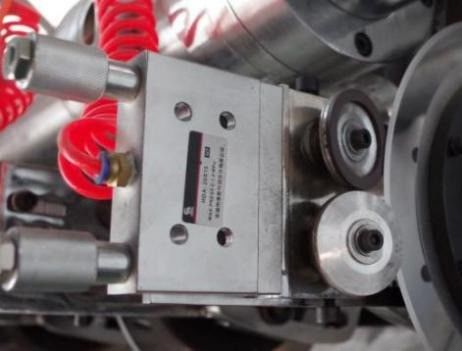

Scorer pneumatic lifting,Overall adjustment indentation depth.Scorer adopt high quality steel,improve service life.

Product packaging

Recommend Products

Company Profile

Our Advantages

Certifications

Exhibition

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
