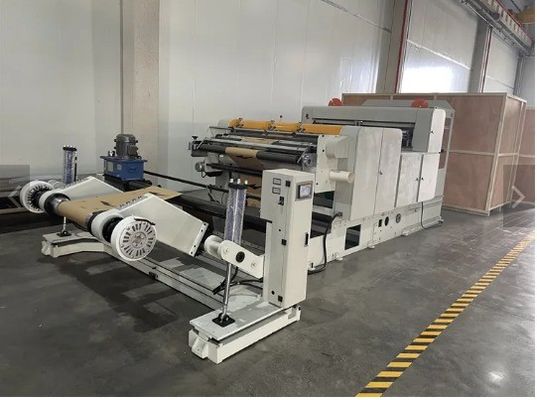

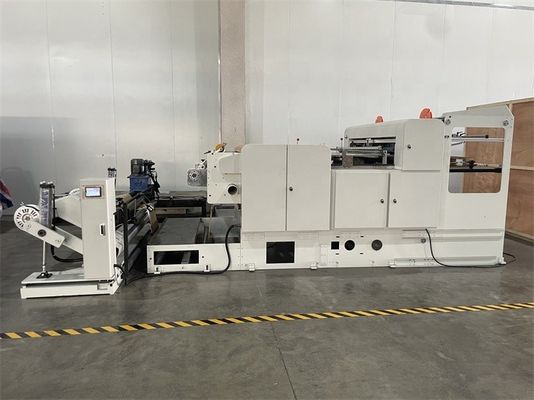

High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG

High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG

Large Image :  High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG

Product Details:
Place of Origin: Hebei, China
Brand Name: Liheng
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $20,000.00/sets >=1 sets
Packaging Details: film,container for shipping
Supply Ability: 2 Set/Sets per Month
Contact Now

High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG

Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 1 Year Core Components: PLC, Engine, Bearing, Motor, Gear
Condition: New Usage: Paper Forming Machine
Voltage: 380V/220V Dimension(L*W*H): 5800*3700*2000mm
Weight: 4000 KG Warranty: 1 Year
Key Selling Points: High-accuracy Marketing Type: New Product 2020
Power: 8Kw Cutting Speed: 150-180 Times/min
Max Diameter Mother Roll: 1400mm Cutting Type: Guillotine Knife
Cutting Capability: 40-450 Max Width Mother Roll: 1600mm
Speed Regulation Control: Frequency Converter Max Mother Roll Weight: 1200KG
Cutting Motor: 3.0KW Port: Tianjin Port,China

Product Description
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 0
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 1
Usage:
This machine is suitable to cut the jumbo roll material to sheets. GSM range：40-450.Material:paper, coated paper,adhesive sticker paper,paper&film laminated,plastic film,PVC and so on.

Performance And Characteristics
We adopt servo motor to control the length of cutting, This machine has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise. Frequency converter control motor speed with
stable running, automatic counting, alarm and automatic-stop, Full automatic tension control. Web edge position automatic correct control by EPC system. Waste edge is blowing by fan automatically.

Adopts pneumatic shaft materials loading system with much easy operation and convenience.
It adopts servo motor for controlling constant-length cutting(precision:±0.2mm)
It adopts Japanese Panasonic PLC control, Taiwan Weinveiw touching panel (screen operation).
The machine can slit to two sheets and color photo eye(color tracking sensor) for after printing web material.
The machine can automatic to trimming and stacking the finished sheets.
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 2
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 3
Structural characteristics of :

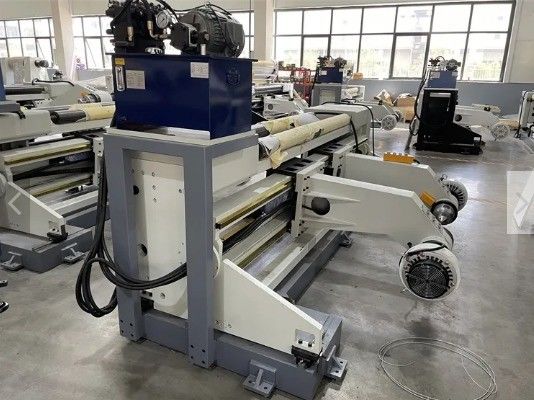

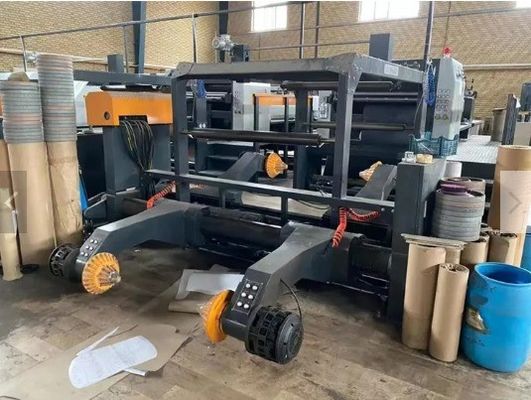

* Taper cast iron paper holder, suitable for 3-12 inch reel paper.

* Tension control adopts multi-point brake, automatic tension control, save labor, time and effort.

* Symmetrical structure can be installed and cut two rolls of original tube paper at the same time.

* The use of hydraulic drive, can complete the base paper lifting, clamping, loosening, moving alignment.
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 4
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 5
* The front section adopts light alloy fog roller, reasonable design of the backbending frame, can ensure the flat paper.

* High precision synchronous belt wheel, manufacturing accuracy of more than 6 levels, low noise, smooth transmission.

* The host adopts Shanghai Dequchi servo drive motor, Germany Kirby servo drive, high quality, quick response and accurate action.

* The paper feed adopts Shanghai Dequchi frequency conversion motor, Taiwan FateK frequency conversion driver

* Tungsten steel blade, tungsten steel welding edge, long blade life (up to one year)
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 6
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 7
* Conveying is divided into two sections: the first section of high-speed conveying, so that the cut white paper quickly out of the cutter shaft; The second section of slow transmission, so that the white paper superposition operation; Quick access to the code stack. Between the first and second conveying, equipped with suction device, so that whiteboard paper stacking neatly, stacking into a stack.

* The rear section is provided with two groups of paper pressing wheel, one of which can adjust the position before and after according to the length of paper cutting.

* Maximum length of paper cut 1500mm.
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 8

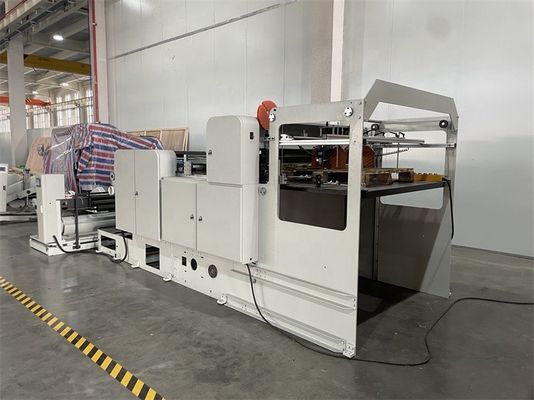

* The stacking department is equipped with front beat paper, side beat paper and backsplash device. The front beat paper is an electric mechanical swing device; The side patting paper is controlled by pneumatic vibration valve, so that the white paper is stacked neatly and aesthetically. The tailgate device can adjust the position according to the length of the whiteboard.

* The stacking part is equipped with marking device, automatic counting, inserting marking paper.

* Maximum stacking height 1500mm.
Specification
Technical parameter
Max width mother roll
1600mm
Max diameter mother roll
1400mm
Max mother roll weight
1200KG
Cutting speed
150-180 times/min
Cutting type
Guillotine knife
Cutting length
20-800mm
Cutting capability
40-450gsm
Precision
±0.2mm
Speed regulation control
Frequency converter
Total Power
11KW
Power input
380V,50HZ,3PH
Dimension
4500*2200*1500
Total weight
4500KG
Drive system
Cutting Motor
3.0KW
Feeding Motor
1.5KW
Main Motor
4.4KW,Yaskawa Servo
Frequency converter
2.2KW，SINEE
Feeding roller
Rubber roller
Transmit roller
Aluminum roller
Transmit way
Synchronous belt
Pressing way
Cylinder
Bearing
Renben
Control system
PLC
Panasonic，Japan
Touching screen
Weivien,China Taiwan
Tension control
Full automatic
EPC(edge postion correct）
Ultrasonic sensor
EPC precision
±0.2mm
Count meter
Full automatic
Automatic stop
Setting in PLC touch screen
Marking machine
Automatically set the number of tabs
Cutting equipment
Guillotine knife
2PCS
Blade knife
3PCS
Adjustment way
Freely by manual
Unwinding equipment
Unwinding type（optional）
3inch, pneumatic shaft
Lifting up way
Cylinder control
Guide way
Right&Left 150mm
Product packaging
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 9
Recommend Products
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 10
Company Profile
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 11
Our Advantages
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 12
Certifications
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 13
Exhibition
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 14
High Precision Single Roller Paper Sheeter Machine with Max Mother Roll Weight 1200KG 15
1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
