Automatic Plastic Film Paper Slitting Machine with Round Cutter 150 Times/min Production

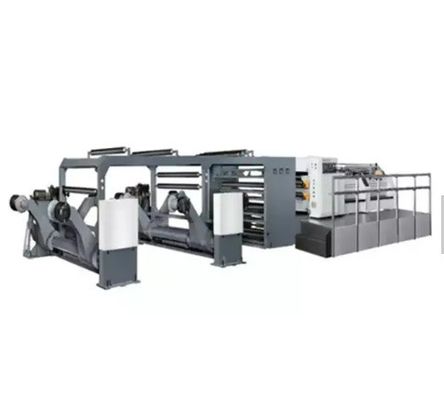

Large Image : Automatic Plastic Film Paper Slitting Machine with Round Cutter 150 Times/min Production

Product Details:

Place of Origin:	Hebei, China
Brand Name:	liheng

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$70,000.00/sets >=1 sets
Supply Ability:	1 Set/Sets per Month

Contact Now

Automatic Plastic Film Paper Slitting Machine with Round Cutter 150 Times/min Production

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine	Voltage:	380V
Dimension(LWH):	580037002000mm	Weight:	4000 KG
Warranty:	2 Years	Key Selling Points:	Competitive Price
Port:	Tianjin Port

Product Description

Usage:

This machine is suitable to cut the jumbo roll material to sheets. GSM range:40-450.Material:paper, coated paper,adhesive sticker paper,paper&film laminated,plastic film,PVC and so on.

Performance And Characteristics

We adopt servo motor to control the length of cutting, This machine has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise. Frequency converter control motor speed with
stable running, automatic counting, alarm and automatic-stop, Full automatic tension control. Web edge position automatic correct control by EPC system. Waste edge is blowing by fan automatically.

Adopts pneumatic shaft materials loading system with much easy operation and convenience.

It adopts servo motor for controlling constant-length cutting(precision:±0.2mm)

It adopts Japanese Panasonic PLC control, Taiwan Weinveiw touching panel (screen operation).

The machine can slit to two sheets and color photo eye(color tracking sensor) for after printing web material.

The machine can automatic to trimming and stacking the finished sheets.

Structural characteristics of :

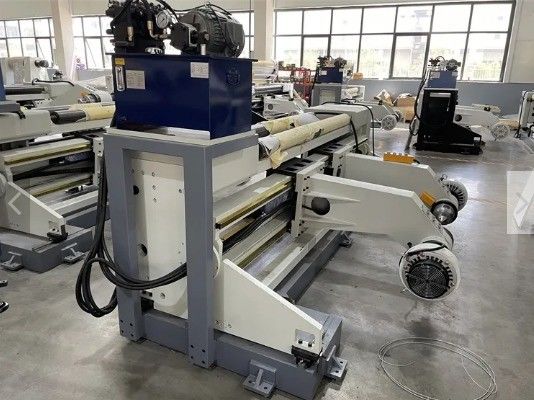

* Taper cast iron paper holder, suitable for 3-12 inch reel paper.

* Tension control adopts multi-point brake, automatic tension control, save labor, time and effort.

* Symmetrical structure can be installed and cut two rolls of original tube paper at the same time.

* The use of hydraulic drive, can complete the base paper lifting, clamping, loosening, moving alignment.

* The front section adopts light alloy fog roller, reasonable design of the backbending frame, can ensure the flat paper.

* High precision synchronous belt wheel, manufacturing accuracy of more than 6 levels, low noise, smooth transmission.

* The host adopts Shanghai Dequchi servo drive motor, Germany Kirby servo drive, high quality, quick response and accurate action.

* The paper feed adopts Shanghai Dequchi frequency conversion motor, Taiwan FateK frequency conversion driver

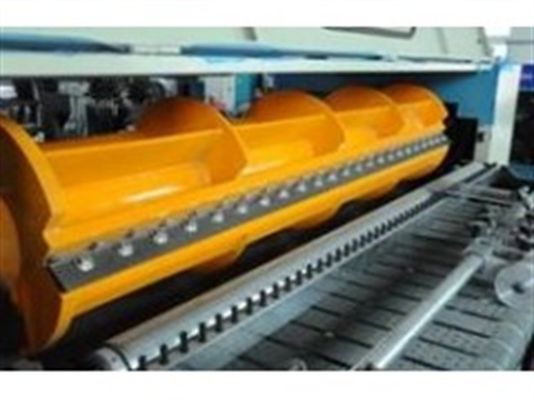

* Tungsten steel blade, tungsten steel welding edge, long blade life (up to one year)

* Conveying is divided into two sections: the first section of high-speed conveying, so that the cut white paper quickly out of the cutter shaft; The second section of slow transmission, so that the white paper superposition operation; Quick access to the code stack. Between the first and second conveying, equipped with suction device, so that whiteboard paper stacking neatly, stacking into a stack.

* The rear section is provided with two groups of paper pressing wheel, one of which can adjust the position before and after according to the length of paper cutting.

* Maximum length of paper cut 1500mm.

* The stacking department is equipped with front beat paper, side beat paper and backsplash device. The front beat paper is an electric mechanical swing device; The side patting paper is controlled by pneumatic vibration valve, so that the white paper is stacked neatly and aesthetically. The tailgate device can adjust the position according to the length of the whiteboard.

* The stacking part is equipped with marking device, automatic counting, inserting marking paper.

* Maximum stacking height 1500mm.

Specification

Technical parameter
Max width mother roll	1600mm
Max diameter mother roll	1400mm
Max mother roll weight	1200KG
Cutting speed	150-180 times/min
Cutting type	Guillotine knife
Cutting length	20-800mm
Cutting capability	40-450gsm
Precision	±0.2mm
Speed regulation control	Frequency converter
Total Power	11KW
Power input	380V,50HZ,3PH
Dimension	450022001500
Total weight	4500KG

Drive system
Cutting Motor	3.0KW
Feeding Motor	1.5KW
Main Motor	4.4KW,Yaskawa Servo
Frequency converter	2.2KW,SINEE
Feeding roller	Rubber roller
Transmit roller	Aluminum roller
Transmit way	Synchronous belt
Pressing way	Cylinder
Bearing	Renben

Control system
PLC	Panasonic,Japan
Touching screen	Weivien,China Taiwan
Tension control	Full automatic
EPC(edge postion correct)	Ultrasonic sensor
EPC precision	±0.2mm
Count meter	Full automatic
Automatic stop	Setting in PLC touch screen
Marking machine	Automatically set the number of tabs

Cutting equipment
Guillotine knife	2PCS
Blade knife	3PCS
Adjustment way	Freely by manual
Unwinding equipment
Unwinding type(optional)	3inch, pneumatic shaft
Lifting up way	Cylinder control
Guide way	Right&Left 150mm

Product packaging
