accuracy Carton Cut Off Machine for Corrugated Cardboard Box Production Line Made

Large Image : accuracy Carton Cut Off Machine for Corrugated Cardboard Box Production Line Made

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$10,000.00/sets >=1 sets
Packaging Details:	Plastic film packaging, fixed with steel wire in the container
Supply Ability:	1000 Set/Sets per Year

Contact Now

accuracy Carton Cut Off Machine for Corrugated Cardboard Box Production Line Made

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert	Showroom Location:	None
Video Outgoing-inspection:	Not Available	Machinery Test Report:	Provided
Warranty Of Core Components:	2 Years	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Usage:	Paper Forming Machine
Voltage:	380V	Weight:	3000 KG
Warranty:	2 Years	Key Selling Points:	High-accuracy
Brand:	LIHENG	Product Name:	NC Cut Off
After-sales Service Provided:	Service Machinery Overseas	Keywords:	Carton Box Making Machine Corrugated
Function:	Cut Off Paper	Driven Type:	Electric
Design Speed:	120m/min	Max Working Pneumatic Pressure:	0.6-0.9Mpa
Size:	1400/1600/1800/2000/2200/2500/2800mm	Length Of Track For Carry Paper Mill:	6000mm
Port:	Tianjin

Product Description

Product Details

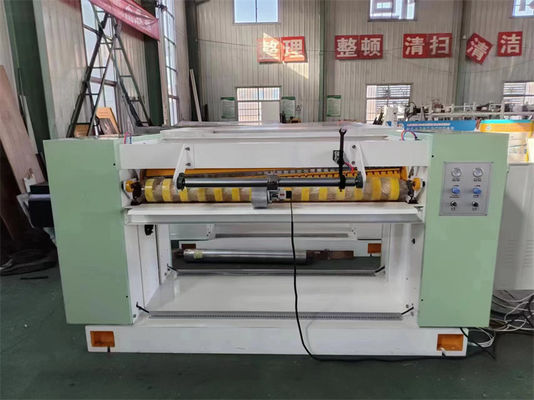

NC cut off :

Function :

Effective width :1400mm
Design speed : 80m/min-120min
Mechanical configuration : slitter and NC straight knife
Min cutting length : 300mm
Max cutting length : 9999mm
Cutting accuracy :±1mm（uniform speed）±1.5mm (non-uniform speed )
Five group ȼ 160 round knife Memory of 200 orders, man-machine interface, the screen displays information available, easy for machine operator modify or cancel order at Any time.
Adopt Germany KEB servo system and high performance synchronous Servo motor.
Helical knives structure with HSS knife edge, serration type knife and scissor cutting with less shear force, to keep the knives long life.
Host base and machine frame adopt grey cast iron, to keep machine Strong and stable.
Adopt 3 section up stacker , the paperboard automatic side delivery after reach setting quantity. Max.stacking length 1.3meters.
This machine suitable for offset printing business.

Double layer NC cut off :

Function :

Effective width : 2200MM
Design speed : 120min
Mechanical configuration : slitter and NC Heclial knife
Min cutting length : 300mm
Max cutting length : 9999mm
Cutting accuracy :±1mm（uniform speed）±1.5mm (non-uniform speed ).
Five group ȼ 160 round knife .
Memory of 200 orders, man-machine interface, the screen displays information available, easy for machine operator
modify or cancel order at Any time .
Adopt Germany KEB servo system and high-performance synchronous Servo motor.
Helical knives structure with HSS knife edge, serration type knife and scissor cutting with less shear force, to keep the knives long life.
Host base and machine frame adopt grey cast iron, to keep machine Strong and stable.
Adopt 3 section up stacker , the paperboard automatic side delivery after reach setting quantity. Max.stacking length 1.3meters.
This machine suitable for offset printing business.

Specification

Max. working width	1400mm
Min. working width	900mm
Max. paper mill diameter	1500mm
Max working pneumatic pressure:	0.6-0.9Mpa
Power requirements:	380V, 50Hz
Length of track for carry paper mill	6000mm
