Dual Helical Knife Double-Layer Rotary Cut-off Machine for Corrugator Line 6000mm Track

Large Image : Dual Helical Knife Double-Layer Rotary Cut-off Machine for Corrugator Line 6000mm Track

Product Details:

Place of Origin:	Hebei, China
Brand Name:	YUYUAN

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$9,286.00 - $21,420.00/sets
Packaging Details:	Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake in the container.
Supply Ability:	5 Set/Sets per Month

Contact Now

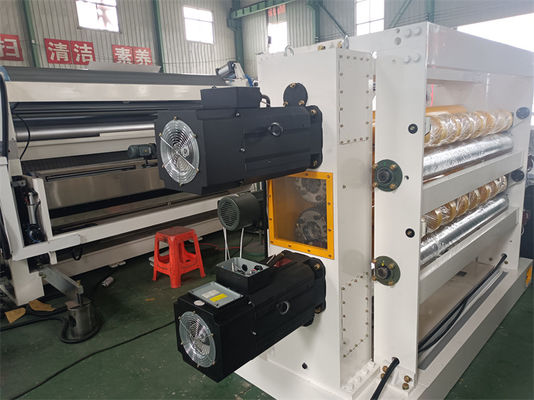

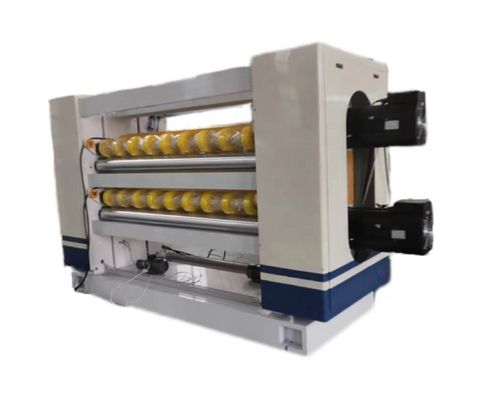

Dual Helical Knife Double-Layer Rotary Cut-off Machine for Corrugator Line 6000mm Track

Description

Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company	Showroom Location:	None
Video Outgoing-inspection:	Not Available	Machinery Test Report:	Provided
Warranty Of Core Components:	2 Years	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine	Voltage:	380/50Hz
Weight:	3000 KG	Warranty:	2 Years
Key Selling Points:	Long Service Life	Type:	NC Cut Off / Double Layer NC Cut Off
Design Speed:	120m/min	Size:	1400/1600/1800/2000/2200/2500/2800mm
Max Working Pneumatic Pressure:	0.6-0.9Mpa	Length Of Track For Carry Paper Mill:	6000mm
Function:	High Effieciency	Driven Type:	Electric
Port:	Tianjin Port

Product Description

NC cut off :

Function :

Effective width :1400mm

Design speed : 80m/min-120min

Mechanical configuration : slitter and NC straight knife

Min cutting length : 300mm

Max cutting length : 9999mm

Cutting accuracy :±1mm（uniform speed）±1.5mm (non-uniform speed )

Five group ȼ 160 round knife Memory of 200 orders, man-machine interface, the screen displays information available, easy for machine operator modify or cancel order at Any time.

dopt Germany KEB servo system and high performance synchronous Servo motor.

Helical knives structure with HSS knife edge, serration type knife and scissor cutting with less shear force, to keep the knives long life.

Host base and machine frame adopt grey cast iron, to keep machine Strong and stable.

Adopt 3 section up stacker , the paperboard automatic side delivery after reach setting quantity. Max.stacking length 1.3meters.

This machine suitable for offset printing business.

Double layer NC cut off :

Function :

Effective width : 2200MM

Design speed : 120min

Mechanical configuration : slitter and NC Heclial knife

Min cutting length : 300mm

Max cutting length : 9999mm

Cutting accuracy :±1mm（uniform speed）±1.5mm (non-uniform speed ).

Five group ȼ 160 round knife .

Memory of 200 orders, man-machine interface, the screen displays information available, easy for machine operator
modify or cancel order at Any time .

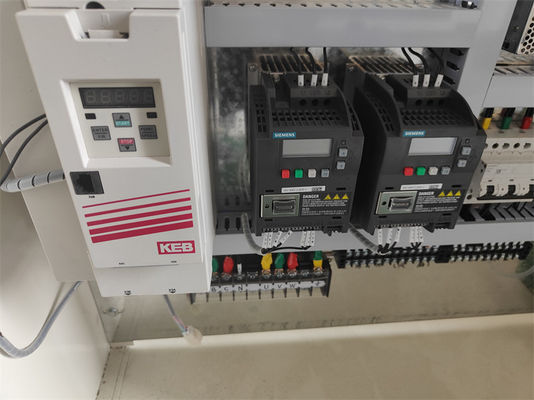

Adopt Germany KEB servo system and high-performance synchronous Servo motor.

Helical knives structure with HSS knife edge, serration type knife and scissor cutting with less shear force, to keep the knives long life.

Host base and machine frame adopt grey cast iron, to keep machine Strong and stable.

Adopt 3 section up stacker , the paperboard automatic side delivery after reach setting quantity. Max.stacking length 1.3meters.

This machine suitable for offset printing business.

Specification

Max. working width	1400mm
Min. working width	900mm
Max. paper mill diameter	1500mm
Max working pneumatic pressure:	0.6-0.9Mpa
Power requirements:	380V, 50Hz
Length of track for carry paper mill	6000mm
