Paper Forming Machine Servo Nc Slitter Scorer Thin Blade For Corrugated Cardboard Box Line

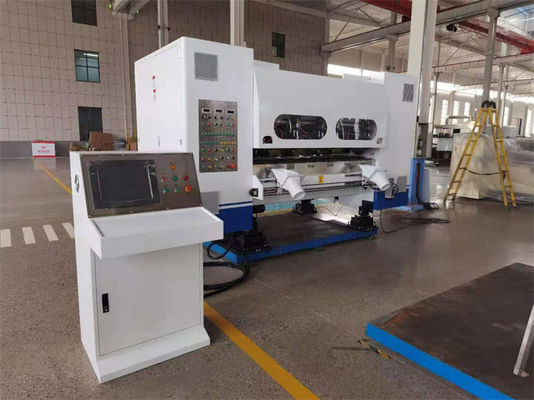

Large Image : Paper Forming Machine Servo Nc Slitter Scorer Thin Blade For Corrugated Cardboard Box Line

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$21,400.00/sets 1-1 sets
Packaging Details:	Plastic film packaging, fixed with steel wire in the container
Supply Ability:	1000 Set/Sets per Year

Contact Now

Paper Forming Machine Servo Nc Slitter Scorer Thin Blade For Corrugated Cardboard Box Line

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine	Voltage:	380V
Dimension(LWH):	283012602000(mm)	Weight:	2500 KG
Warranty:	2 Years	Key Selling Points:	High-accuracy
Brand:	LIHENG	Product Name:	Thin Blade Slitter Scorer Machine
Function:	Used For Cutting Cardboard	Keywords:	Thin Blade
Speed:	150m/min	Application:	Corrugated Cardboard Production
Color:	Customer Requirement	Advantage:	High Effective
After-sales-Service:	2 Year Guarantee	Port:	Tianjin

Product Description

NC Slitter scorer

Product overview:As an important equipment of corrugated cadres,Complete the high quality of creasing and precise cutting.orders can be changed quickly with two machines.

Function and characteristic:

1.The space between slitting blades is automatic adjusted,automatic locking,improve work efficiency. 2.Using the synchronous belt
transmission,low noise. 3.Taiwan colorful touch screen,simple operation. 4.Adopt computer control automatic or manual grinding.
5.The control system is composed of high performance and double frequency converter,energy saving,stable and reliable. 6.Keep the
synchronous speed with the production line automatically. 7.Patent type passive grinding,compact structure,can work while
sharpening,improve work efficiency.

Specification

Model	1800	2200
Max slitting size（mm）	1850	2250
Min slitting size（mm）	130
Min scorer width（mm）	0 mm
Scorer height（mm）	0-12
Blade size（mm）	200*122
Blade/scorer	4/6 ,5/8 ,6/10,7/12
Machine dimension	283013002000(mm)	313013002000(mm)
Power	12kw	15kw
Speed	150m/min
Order change time	1-5S

Packing & Delivery

The space between slitting blades is electrically adjusted,automatic locking,improved working efficiency.

Alloyed steel thin-blades,sharp and long life of over 800 million meters,auto sharpening.automatic grinding.

Scorer pneumatic lifting,Overall adjustment indentation depth.Scorer adopt high quality steel,improve service life.

Product packaging

Recommend Products

Company Profile

Our Advantages

Certifications

Exhibition

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
