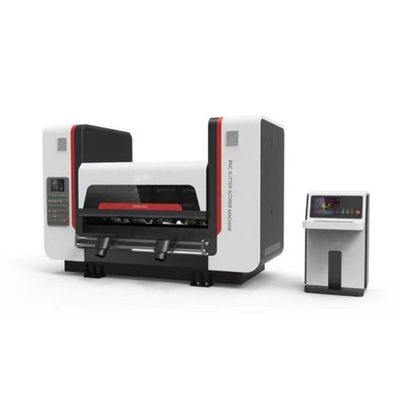

Thin Blade Single Facer Paperboard Cutter with Electrical Control and 380V Voltage

Large Image : Thin Blade Single Facer Paperboard Cutter with Electrical Control and 380V Voltage

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$21,400.00/sets 1-1 sets
Packaging Details:	Plastic film packaging, fixed with steel wire in the container
Supply Ability:	1000 Set/Sets per Year

Contact Now

Thin Blade Single Facer Paperboard Cutter with Electrical Control and 380V Voltage

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine	Voltage:	380V
Dimension(LWH):	283012602000(mm)	Weight:	2500 KG
Warranty:	2 Years	Key Selling Points:	High-accuracy
Brand:	LIHENG	Product Name:	Thin Blade Slitter Scorer Machine
Function:	Used For Cutting Cardboard	Keywords:	Thin Blade
Speed:	150m/min	Application:	Corrugated Cardboard Production
Color:	Customer Requirement	Advantage:	High Effective
After-sales-Service:	2 Year Guarantee	Port:	Tianjin

Product Description

NC Slitter scorer

Product overview:As an important equipment of corrugated cadres,Complete the high quality of creasing and precise cutting.orders can be changed quickly with two machines.

Function and characteristic:

1.The space between slitting blades is automatic adjusted,automatic locking,improve work efficiency. 2.Using the synchronous belt
transmission,low noise. 3.Taiwan colorful touch screen,simple operation. 4.Adopt computer control automatic or manual grinding.
5.The control system is composed of high performance and double frequency converter,energy saving,stable and reliable. 6.Keep the
synchronous speed with the production line automatically. 7.Patent type passive grinding,compact structure,can work while
sharpening,improve work efficiency.

Specification

Model	1800	2200
Max slitting size（mm）	1850	2250
Min slitting size（mm）	130
Min scorer width（mm）	0 mm
Scorer height（mm）	0-12
Blade size（mm）	200*122
Blade/scorer	4/6 ,5/8 ,6/10,7/12
Machine dimension	283013002000(mm)	313013002000(mm)
Power	12kw	15kw
Speed	150m/min
Order change time	1-5S

Packing & Delivery

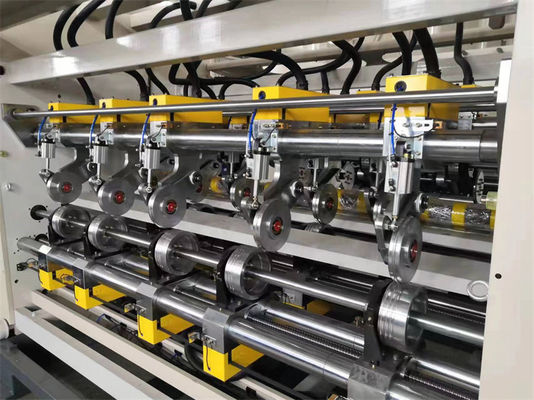

The space between slitting blades is electrically adjusted,automatic locking,improved working efficiency.

Alloyed steel thin-blades,sharp and long life of over 800 million meters,auto sharpening.automatic grinding.

Scorer pneumatic lifting,Overall adjustment indentation depth.Scorer adopt high quality steel,improve service life.
