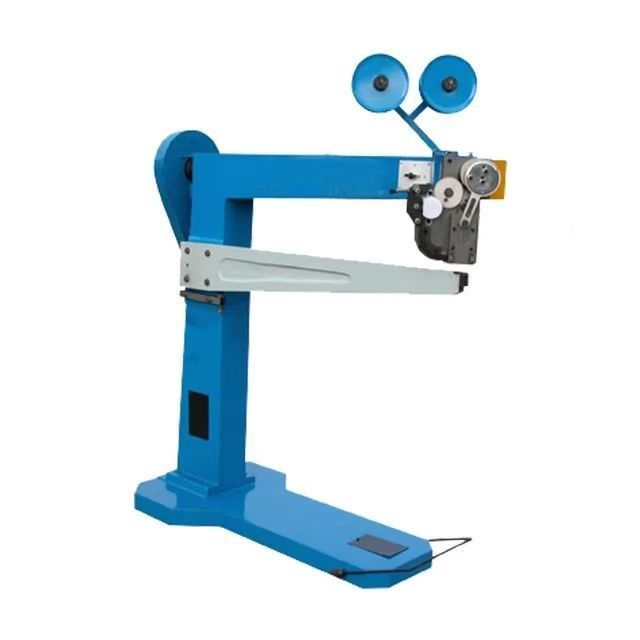

Customized Corrugated Cardboard Carton Manual Stitching Machine 380V 600 KG

Large Image : Customized Corrugated Cardboard Carton Manual Stitching Machine 380V 600 KG

Product Details:

Place of Origin:	Hebei, China
Brand Name:	Liheng

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$500.00/sets >=1 sets

Contact Now

Customized Corrugated Cardboard Carton Manual Stitching Machine 380V 600 KG

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Manual
Usage:	Paper Forming Machine	Voltage:	380V
Dimension(LWH):	19007001820 Mm	Weight:	600 KG
Warranty:	1 Year	Key Selling Points:	Competitive Price

Product Description

Specification

item	value
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition	New
Automatic Grade	Manual
Usage	Paper Forming Machine
Place of Origin	China
	Hebei
Brand Name	Liheng
Voltage	380V
Dimension(LWH)	19007001820 mm
Weight	600KG
Warranty	1 Year
Key Selling Points	Competitive Price

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

FAQ

1. who are we?
We are based in Hebei, China, start from 2020,sell to Domestic Market(00.00%),South Asia(00.00%),Southern Europe(00.00%),Northern Europe(00.00%),Central America(00.00%),Western Europe(00.00%),Eastern Asia(00.00%),Mid East(00.00%),Oceania(00.00%),Africa(00.00%),Southeast Asia(00.00%),Eastern Europe(00.00%),South America(00.00%),North America(00.00%). There are total about null people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
pringting die cutting machine,carton product line

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese

Product Description

★The entire set of nail heads are made of Taiwan original parts, and the service life of the head is longer.

★ It only takes one minute to change the carton size and adjust the nail distance of the carton, which greatly saves time and is easy to operate.

★There is an automatic counting function in the back section, and the number of finished products can be divided and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packing and binding.

★ The front paper feeding section automatically counts, and the paper feeding table is equipped with a photoelectric sensor, which automatically rises when feeding paper.

★ Paper feeding height: 900mm.

★ Mechanical speed: 600 nails/min.

★ One set of dual purpose, can nail single-chip nailed cartons, double-chip nailed cartons, and irregular cartons.

★ Reinforced nails, single nails, double rows of nails can be nailed, all at once.

★ The paper feeding department automatically counts, and the finished product is sent out for binding.

★ Suitable for small and medium-sized cartons, fast and labor saving.

★ Adjust the nail distance, use the computer to set the nail distance automatically, and the nail distance can be adjusted at will from 30-150mm;

★ Automatic wire feeding system, 20KG large flat wire, saving time.

★ Features of this machine: three-layer, five-layer, and seven-layer carton thickness adjustment is fully computer controlled, fast and accurate.

★ This machine adopts four servo motors (namely two head motors and two feeding motors).

★ Isolation and voltage-stabilizing transformer protection device of the whole electrical appliance can better protect the service life of the whole computer electrical appliances.

★ The latest machine adopts a full computer to automatically adjust all sizes, and automatically adjusts the size of different models in one minute, fast and accurate, and can store 1,000 orders.

★ Binding method: double oblique nail or single oblique nail/reinforced nail.

Specification

Model and parameters	SDJ-1600D	SDJ-2000	SDJ-2500
Maximum paper size (A+B) * 2 (mm)	3200	4000	5000
Minimum paper size (A+B) * 2 (mm)	980	980	980
Maximum carton length A mm	1480	1880	2380
Minimum carton length A mm	370	370	370
Maximum carton width B mm	800	1000	1250
Minimum carton width B mm	120	120	120
Maximum paper height (C+D+C) (mm)	2900	2900	2900
Minimum paper height (C+D+C) (mm)	400	400	400
Maximum flap size C (mm)	450(Standard) 600(Optional)	450(Standard) 600(Optional)	450(Standard) 600(Optional)
Minimum flap size C (mm)	80(Standard) 20(Optional)	80(Standard) 20(Optional)	80(Standard) 20(Optional)
Maximum height D (mm)	2000	2000	2000
Minimum height D (mm)	200	200	200
Max tongue width (mm)	40	40	40
Nail distance mm	30-150	30-150	30-150
Nail number	2-99	2-99	2-99
Nail speed (times/mim)	600	600	600
Machine weight (T)	3.0	3.2	3.5
