Corrugated Cardboard Production Line with Air Source 0.4-0.9Mpa Guaranteed

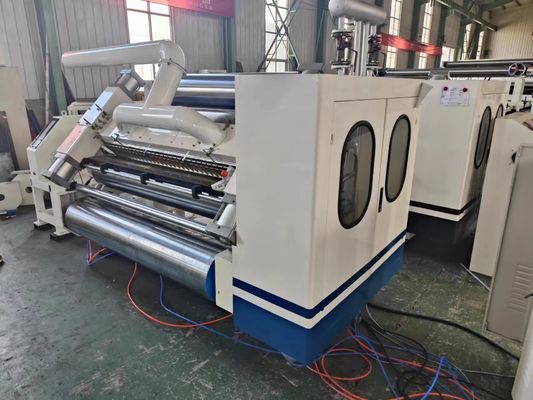

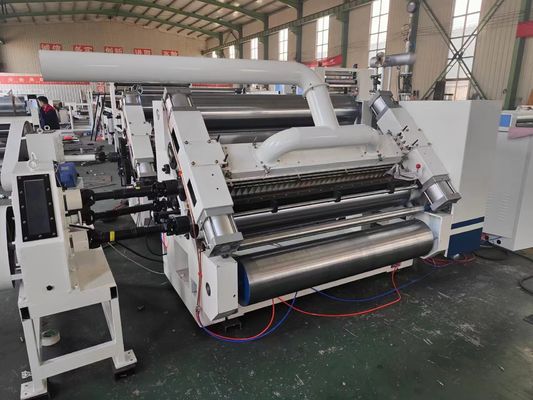

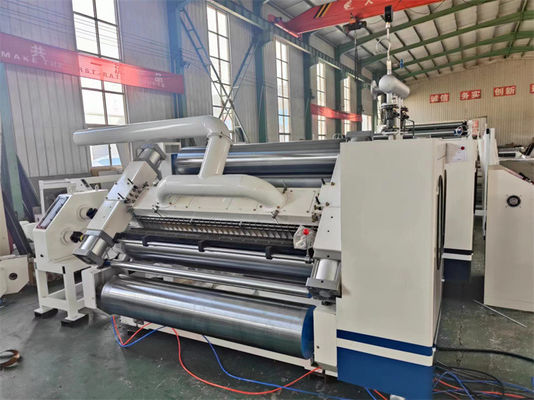

Large Image : Corrugated Cardboard Production Line with Air Source 0.4-0.9Mpa Guaranteed

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$14,000.00/sets >=1 sets
Packaging Details:	Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake.
Supply Ability:	15 Set/Sets per Month

Contact Now

Corrugated Cardboard Production Line with Air Source 0.4-0.9Mpa Guaranteed

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Usage:	Paper Forming Machine
Voltage:	380V 50Hz	Dimension(LWH):	350017002200mm
Weight:	6500 KG	Warranty:	2 Years
Key Selling Points:	High-accuracy	Product Name:	High Quality Single Facer Board Machine
Driven Type:	Electric-Pneumatic	Application:	Corrugated Cardboard Production
Effective Width:	1600mm	Design Speed:	150m/min
Range Of Temperature:	160-180℃	Air Source:	0.4-0.9Mpa
Steam Pressure:	0.8-1.3Mpa	Port:	Tianjin

Product Description

Use and Characteristics:

1. Design speed: 100m/min.
2. Effective width: 1400mm- 1800mm.
3. Corrugated roller: φ 280mm.
4. The driving reducer adopts oil penetration lubrication, reducing noise, universal joint drive and isolating power source.
5. Upper roller, pressure roller and rubber roller lift, all with pneumatic control.
6. The guide paper adopts vacuum adsorption, with air volume adjustment device, to maintain the stability of corrugated type in
high speed.

Use and Characteristics:

7. The roller and pressure roller bearings are lubricated with high temperature resistance grease.

8. The gelatinize part adopts automatic circulation for glue.
9. The upper and lower corrugated roller adopts 48CrMo high quality chromium aluminum alloy steel, after heat treatment, the
hardness is grinding on the surface of hrc58o-60o.
10. The surface of the rubber roller has been treated with the mesh cut and chrome plating.
11. Manual or electric separation device.
12. The machine can operate independently or without independent operation, and the main power converter control (optional).

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
