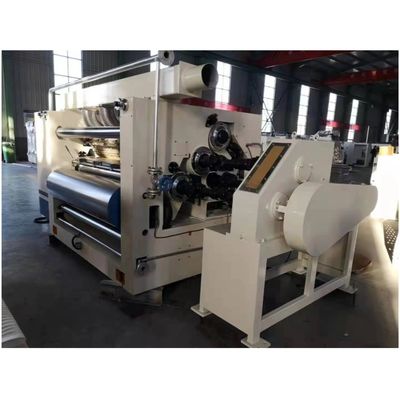

Corrugated Cardboard Production Line Single Facer Unit with Steam Pressure 0.8-1.3Mpa

Large Image : Corrugated Cardboard Production Line Single Facer Unit with Steam Pressure 0.8-1.3Mpa

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$18,000.00/sets >=1 sets
Packaging Details:	Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake.
Supply Ability:	15 Set/Sets per Month

Contact Now

Corrugated Cardboard Production Line Single Facer Unit with Steam Pressure 0.8-1.3Mpa

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine	Voltage:	380V 50Hz
Dimension(LWH):	350017002200mm	Weight:	6500 KG
Warranty:	2 Years	Key Selling Points:	High-accuracy
Product Name:	High Quality Single Facer Board Machine	Driven Type:	Electric-Pneumatic
Application:	Corrugated Cardboard Production	Effective Width:	1600mm
Design Speed:	150m/min	Range Of Temperature:	160-180℃
Air Source:	0.4-0.9Mpa	Steam Pressure:	0.8-1.3Mpa
Port:	Tianjin

Product Description

The product is made to order, we will quote according to the model you want

* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
*Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
* Upper and lower corrugated roller are unit assemblage ,the whole corrugated rollers group can be move and quick replacement to change flute type quickly.
*Gluing roller: surface is embossed with netting design and chrome plated.
*Glue section are unit assemblage ,whole section can be moved by track ,save maintenance time ,glue part can be running
independently r non-independently while stopped .
* Frequency conversion motor as main drive ,independent gear box connect with three gimbal axis , inverter to make stepless speed regulation for save power and keep one communication connector for production management .
*Press roller: Dia.364mm. with drum.
* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance.
*Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system

Use and Characteristics:

1. Max. machine speed : 150m/min
2. Economic speed : 120m/min
3. Max. working width : 1800mm
4. Max working steam pressure : 0.4-0.9Mpa
5. Steam temperature : 160—210 centigrade
6. Power requirements :380V, 50Hz
7. Diameter of corrugated roller : 320mm
8. Diameter of Press roller : 364mm.
9. Diameter of preheater roller : 320mm
10. Diameter of Glue roller : 242mm
11. Diameter of doctor roller : 135mm
12. Design speed : 150m/min.
