Customizable Retail 7000 KG Hydraulic Press Die Cutting Machine for Manual Cutting

Name: Customizable Retail 7000 KG Hydraulic Press Die Cutting Machine for Manual Cutting
Brand: Cangzhou Yuyuan Imp & Exp Trade Co., Ltd.
Availability: InStock

All Products

Corrugated Cardboard Production Line
(785)

Partition Board Machine
(40)

Paper Sheeter Machine
(38)

Thin Blade Slitter Scorer Machine
(174)

Carton Stitching Machine
(135)

NC Cut Off Machine
(75)

Die Cutting And Creasing Machine
(160)

Automatic Folder Gluer
(33)

Semi Automatic Laminating Machine
(210)

Folder Gluer Machine
(196)

Single Facer Machine
(204)

Flexo Printing Machine
(661)

Ungrouped
(52)

Certification

I'm Online Chat Now

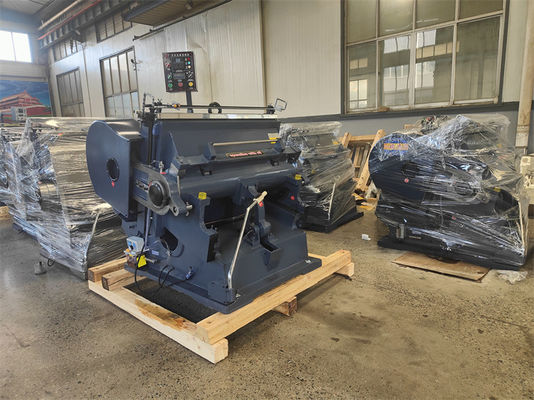

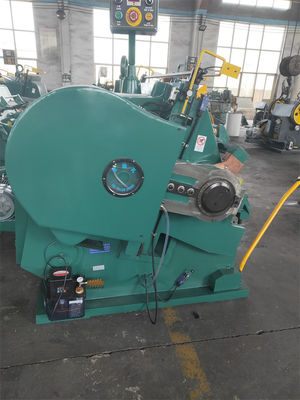

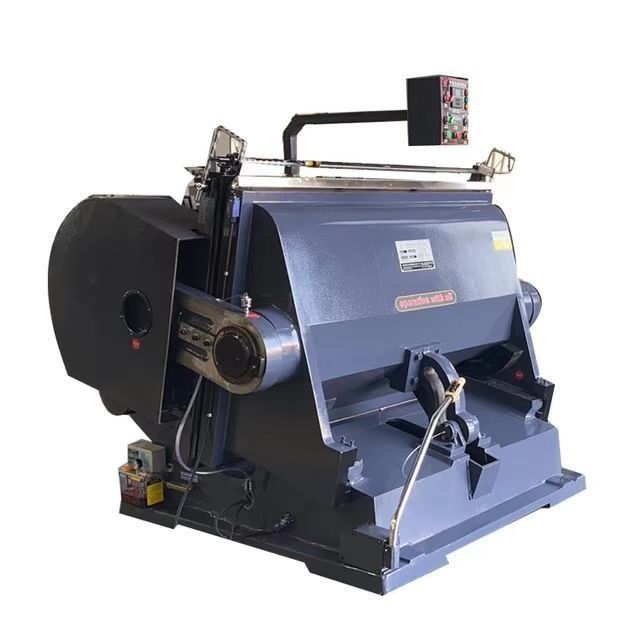

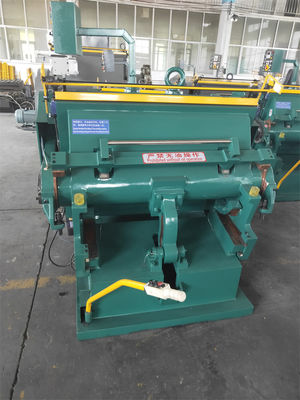

Customizable Retail 7000 KG Hydraulic Press Die Cutting Machine for Manual Cutting

Large Image : Customizable Retail 7000 KG Hydraulic Press Die Cutting Machine for Manual Cutting

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG
Certification:	CE Certificate

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$8,000.00/sets >=1 sets
Supply Ability:	1 Set/Sets per Month

Contact Now

Customizable Retail 7000 KG Hydraulic Press Die Cutting Machine for Manual Cutting

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Semi-automatic
Usage:	Paper Forming Machine	Voltage:	380V /220V
Dimension(LWH):	200025001930mm	Weight:	7000 KG
Warranty:	1 Year	Key Selling Points:	High-accuracy
Product Name:	High Quality Carton Die Cutting And Creasing Machi	After-sales Service Provided:	1 Year
Brand:	Liheng	Color:	Customer's Request
Driven Type:	Electricl	Packaging Material:	Plastic Film
Port:	Tianjin Port

Product Description

Function characteristics:

1.Sliding bearing adopts high-quality casting copper alloy, with wear resistant and damping performance.
2.Flywheel with large torque, so the pressure shear is large.

3.Airframe adopts high quality materials integrally cast, with high strength and good rigidity.

4.Monolithic electromagnetic clutch sensitive and reliable.

5.The whole machine equipped with continue pressing, cutting and opening three functions, delay time can be adjusted. 6.Operating height design is reasonable.

7.Concentrated lubrication system ensures good lubrication, reduce machine wear. 8.Safety and protection system is reliable.

Product Detials

1.Safty system is reatly reliable.
2.Single plate electromagnetic clutch is sensitive subreliable.
3.Operationa altitude is reasonably arranged,moving-bed opens to its optimun.
4.High strength dive to one piece casting by using top quality materials for machine body.
5.Smooth running,big pressure and low price are obviously remarked as 3-step helical gear mechanism is adopted.
6.Note:The color of equipment can be from choose.

Model	Max.Die-cutting Area	Working speed	Creasing Length	Motor	Weight	Overall Dimensions
ML 750	750 x 520mm	28±2(sheets/min)	<15m	2.2kw	2000	1260 x1350 x1280
ML 930	930 x 670mm	23±2(sheets/min)	<25m	4.0kw	3000	1800 x 1600 x 1600
ML 1100	1100x 800mm	20±2(sheets/min)	<32m	5.5kw	4000	1900 x 1800 x170
ML 1200	1200 x830mm	20±2(sheets/min)	<35m	5.5kw	4300	1900 x 2000 x1700
ML 1300	1300 x 920mm	18±2(sheets/min)	<40m	5.5kw/7.5kw	5500	2000 x 2400 x 1800
ML 1400	1400 x 1000mm	18±2(sheets/min)	<45m	5.5kw/7.5kw	6000	2000 x 2450 x1900
ML 1400	1400 x 1000mm	18±2(sheets/min)	<45m	5.5kw/7.5kw	6000	2000 x 2450 x1900
ML 1400	1400 x 1000mm	18±2(sheets/min)	<45m	5.5kw/7.5kw	6000	2000 x 2450 x1900
ML 1800	1800x1300mm	16±2(sheets/min)	<62m	15kw	12000	2240 x 2800 x 2230
ML 2000	2000X1400mm	16±2(sheets/min)	<80m	15kw	13500kg	2280 x2900 x2230
ML 2200	2200 x1450mm	16±2(sheets/min)	<90m	18kw	16500	2280 x3000 x2250

Product packaging

Recommend Products

Company Profile

Our Advantages

Certifications

Exhibition

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
