Semi Automatic Two Pieces Folder Gluer Machine for Stock Cardboard Paper Manufacturing

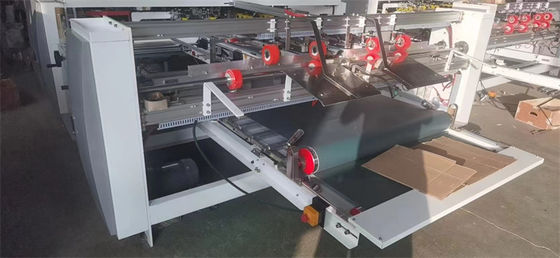

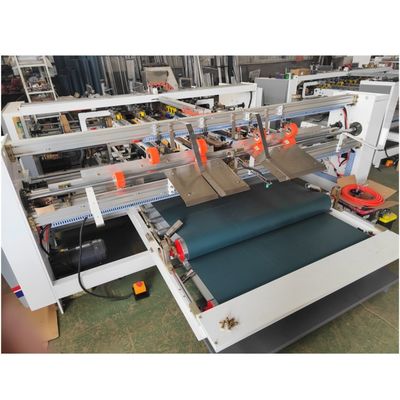

Large Image : Semi Automatic Two Pieces Folder Gluer Machine for Stock Cardboard Paper Manufacturing

Product Details:

Place of Origin:	Hebei, China
Brand Name:	liheng

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$9,000.00 - $12,000.00/sets
Packaging Details:	Plastic film packaging, fixed with steel wire in the container
Supply Ability:	1000 Set/Sets per Year

Contact Now

Semi Automatic Two Pieces Folder Gluer Machine for Stock Cardboard Paper Manufacturing

Description

Warranty:	1 Year	Type:	Other
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	2 Years	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Application:	Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type:	Cartons, Film	Packaging Material:	Plastic, Wood
Automatic Grade:	Automatic	Driven Type:	Mechanical
Voltage:	380V	Power:	7.5
Weight:	2800 KG	Dimension(LWH):	355031001200
Key Selling Points:	Long Service Life	Product Name:	Double Piece Box Gluing Machine
Maximum Paper (mm):	1150*1200	Minimum Paper (mm):	450*300
Color:	Customized Color	OEM/ODM:	Yes
Port:	Tianjin

Product Description

double sheet pasting machine can be used for bonding molding of AA, AB and single sheet molding boxes. The machine can replace manual gluing box in actual production and reduce labor intensity. Compared with the traditional semi-automatic gluing machine, it can save labor. Because of the different working methods, compared with the above two carton bonding molding processes, it can also greatly improve product quality.

1. The wall plate of this machine is made of 45 # plain 12mm high hardness steel plate, and the rest of the workpiece is made of 45 # plain 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm high hardness steel plate, which is processed by CNC surface grinder to ensure the accuracy of the workpiece.

2.The main machine is connected by 120 # channel steel, and the rest are connected by 80×80×8 pieces of 60×60*1 piece of 50×100×2 pieces of aluminum profiles, so as to ensure the stability of the machine.

3.The bearing models are: 6008RS 6206RS 6006RS 6202RS 6007RS 6301RS 6200RS 6004RS 6901RS 51102 51104 KR19; Bearing type with seat: CZTUCFL206 CZTUCT207 CZTUCFC205 CZTUCFC207 CZTUCFL204 CZTUCHA207; Standard metric bushings: Ø23 Ø39 Ø17 Ø10 Ø18 Ø28;

4. Belt model: The length of the feeding belt is 1100mm x 100mm x 6mm x 6mm x holes; Conveyor belt length is 2900mm× width 40mm× thickness 5mm×4; The length of the pressing belt is 4905mm× 1230mm× 2mm×1; 5890mm× width 1230mm× thickness 2mm×1 strip.

5.The main engine is driven by chain, and the sprocket is made up of 5 minutes 20 teeth Ø35 and 30 teeth Ø55 medium wheels, 14 teeth Ø35 medium wheels and 30 teeth Ø30 teeth 4 minutes 20 teeth Ø22 20 teeth Ø38 3 points 21 teeth Ø25 32 teeth Ø12 14 teeth Ø22 The sprockets above are made of 45 # material and then quenched at high frequency to extend their service life.

6. Main motor power is 2.2KW, pressing motor power is 400W, respectively controlled by frequency converter, can be arbitrary speed; Clamping for 2 1KW servo motor, clamping length and speed can be adjusted by ball screw link, so that the paperboard middle pair is more accurate.

7. The paper feeding part adopts air suction and paper feeding. Two 3.0KW horizontal vortex suction pumps greatly enhance the strength of air suction and ensure the stability of paper conveying.

8.The intermediate drive system is driven by a 2.2KW Mitsubishi reducer motor, with electromagnetic clutch and electromagnetic brake as backup drives.

9. glue department: the middle butt part is fixed with hot and cold, hot glue plays a role in shaping, cold glue plays a role in bonding, it can be described as a double bonding, put an end to the single hot melt adhesive due to the change of season and the phenomenon of hot melt adhesive burst as soon as the food box into the cold storage;

10. middle shaping part: the left and right sides of the servo motor clamping, clamping using high-speed bass ball screw and special slider sliding, so as to ensure the sensitivity and accuracy of clamping, but also to prolong its service life, to ensure the accurate shaping of cardboard, greatly improve the yield of the carton;

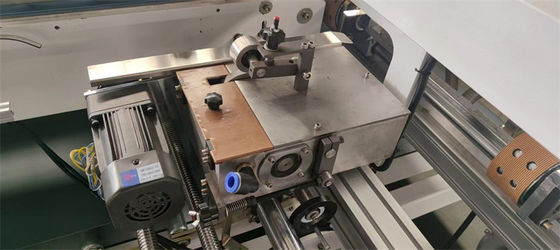

11. Hot glue system: the middle hot melt glue gluing box is made of pure aluminum, with excellent thermal conductivity,
which reduces the time of melting glue block. And the upper part is equipped with an independent heating aluminum glue box, which can be heated while working, and the melted hot glue automatically flows into the lower part of the gluing box, without affecting the work and improving the work efficiency.

12. Cold GLUE SYSTEM: THE RUBBER WHEEL OF the COLD glue coated box is made of stainless steel, and the bearing is corrosion resistant with double seal, which PROlongs its service life.

Specification

item	value
Applicable Industries	Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining, Food & Beverage Shops, Advertising Company
Video outgoing-inspection	Not Available
Machinery Test Report	Provided
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Gear
Condition	New
Usage	Paper Forming Machine
