LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line

Name: LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line
Brand: LIHENG
SKU: LIHENG
Price: 14 USD
Availability: InStock
Rating: 4.9 (118 reviews)

All Products

Corrugated Cardboard Production Line
(785)

Partition Board Machine
(40)

Paper Sheeter Machine
(38)

Thin Blade Slitter Scorer Machine
(174)

Carton Stitching Machine
(135)

NC Cut Off Machine
(75)

Die Cutting And Creasing Machine
(160)

Automatic Folder Gluer
(33)

Semi Automatic Laminating Machine
(210)

Folder Gluer Machine
(196)

Single Facer Machine
(204)

Flexo Printing Machine
(661)

Ungrouped
(52)

Certification

I'm Online Chat Now

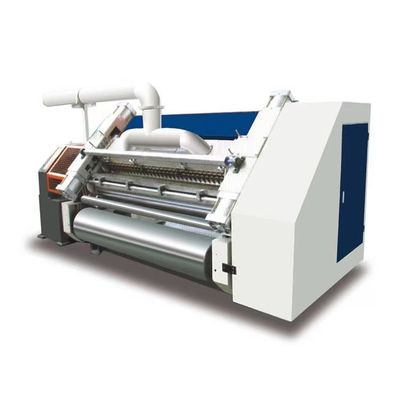

LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line

Large Image : LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$14,000.00/sets >=1 sets
Packaging Details:	Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake.
Supply Ability:	50 Set/Sets per Month

Contact Now

LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line

Description

Condition:	New	Year:	2023
Weight:	4500 KG	Automatic Grade:	Automatic
Voltage:	380V	Power:	7.5KW
Machinery Capacity:	40-60	Key Machines:	Boxing Machines
Packaging Material:	Wood, Plastic	Product Name:	Packaging Machine Production Line
Application:	Corrugated Cardboard Making Machine	After-sales Service Provided:	Service Machinery Overseas
Function:	Making Corrugated Cardboard	Usage:	Packaging Line
Name:	Single Face Corrugator	Keyword:	Packing Box Machine
Advantage:	High Effective	Warranty:	2 Years
Machine Type:	Corrugated Paperboard Making	Port:	Tianjin Port

Product Description

Specification

item	value
Brand Name	LIHENG
Product Name	280s Single Facer Machine
Weight	4500KG
Max. machine speed	100m/min
Economic speed	80m/min
Max. working width	1600mm
Max working steam pressure:	1.0-1.3Mpa
Steam temperature	160—210 centigrade
Power requirements:	380V, 50Hz
Diameter of corrugated roller	280mm
Diameter of Press roller .	320mm.
Diameter of preheater roller	300mm
Diameter of Glue roller	215mm
Diameter of doctor roller	105mm
Main Motor	11kw
Fan Motor	11kw

Use and Characteristics:

1. Design speed: 100m/min.

2. Effective width: 1400mm- 1800mm.

3. Corrugated roller: φ 280mm.

4. The driving reducer adopts oil penetration lubrication, reducing noise, universal joint drive and isolating power source.

5. Upper roller, pressure roller and rubber roller lift, all with pneumatic control.

6. The guide paper adopts vacuum adsorption, with air volume adjustment device, to maintain the stability of corrugated type in

high speed.

7. The roller and pressure roller bearings are lubricated with high temperature resistance grease.

Use and Characteristics:

8. The gelatinize part adopts automatic circulation for glue.

9. The upper and lower corrugated roller adopts 48CrMo high quality chromium aluminum alloy steel, after heat treatment, the

hardness is grinding on the surface of hrc58o-60o.

10. The surface of the rubber roller has been treated with the mesh cut and chrome plating.

11. Manual or electric separation device.

12. The machine can operate independently or without independent operation, and the main power converter control (optional).

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Recommend Products

Company Profile

Cangzhou Liheng carton packaging Machinery Manufacturing Co., LTD.

located in Dongguang County economic Development Zone East. North of Beijing and Tianjin, south of Shandong, and Cangzhou iron Lion, Wuqiao acrobatic world adjacent; Beijing-shanghai Railway, 104 National Road, Beijing-Fu high-speed adjacent through, its convenient transportation, production environment is very superior.

Our company specializes in the production of various types of printing presses and a complete set of packaging machinery and equipment, with independent development and research capabilities, to achieve the high-tech level of sustainable development of equipment, and constantly improve the shortcomings of international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, safe automation machinery and equipment direction. Enterprise talent, strong technical force, with high-tech design personnel, precision production equipment, advanced testing means, strict quality management system and a strong technical production team, to ensure product quality and performance laid a solid foundation

Certifications

Exhibition

FAQ

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west
station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways
you want.
