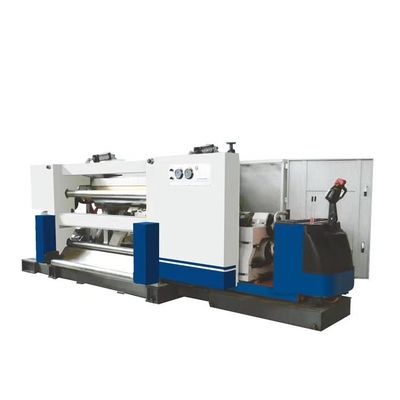

Hebei Liheng Cassete Single Facer Machine For 3 5 7 Layer Corrugated Cardboard Production Line

Large Image : Hebei Liheng Cassete Single Facer Machine For 3 5 7 Layer Corrugated Cardboard Production Line

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$56,000.00/sets 1-1 sets
Packaging Details:	Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake.
Supply Ability:	50 Set/Sets per Month

Contact Now

Hebei Liheng Cassete Single Facer Machine For 3 5 7 Layer Corrugated Cardboard Production Line

Description

Condition:	New	Year:	2023
Weight:	10000 KG	Automatic Grade:	Automatic
Voltage:	380V	Machinery Capacity:	150-200
Key Machines:	Boxing Machines	Packaging Material:	Wood, Plastic
Product Name:	Cassette Single Facer	Application:	Corrugated Cardboard Making Machine
After-sales Service Provided:	Service Machinery Overseas	Function:	Making Corrugated Cardboard
Usage:	Packaging Line	Name:	Single Face Corrugator
Keyword:	Packing Box Machine	Advantage:	High Effective
Warranty:	2 Years	Machine Type:	Corrugated Paperboard Making
Port:	Tianjin Port

Product Description

Specification

item	value
Brand Name	LIHENG
Product Name	Cassette Type 320/360s Single Facer Machine
Weight	10000KG
Max. machine speed	200m/min
Economic speed	180m/min
Max. working width	1400-2200mm
Max working steam pressure:	0.4-0.9Mpa
Steam temperature	160—210 centigrade
Power requirements:	380V, 50Hz
Diameter of corrugated roller	360mm
Diameter of Press roller .	360mm.
Diameter of preheater roller	400mm
Diameter of Glue roller	242mm
Diameter of doctor roller	135mm
Main Motor	15kw
Motor For Adjust Gluer	0.37 KW

Use and Characteristics:

1.320/360E design speed: 180/200m/min.

2. Effective width: 1400mm- 2200mm.

3. Corrugated roller: φ320/360mm.

4. Adopt negative pressure type design, so that the core paper can be uniformly pressed and attached to corrugated surface, evenly coated with glue to make the single corrugated paper better.
5.Fast change roller, 10 minutes, replace the corrugated roller with electric trolley, into the machine, fixed on the machine base, quick and easy to replace the corrugated roll.

6. Corrugated roller and wall-e roller are adopted with high stability air bag control system.

Use and Characteristics:

7. The control of glue volume control adopts electric adjustment, the rubber device is electric, and the gluing system can operate
independently when the host stops, preventing the glue from drying up.

8. The portable gluing system is more convenient for maintenance than cleaning.

9. Simple operation control system, touch screen operation interface, display operation state with color drawing, easy to operate.

10.Built-in preset with spray system to adjust core paper temperature and moisture.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Recommend Products

Company Profile

Cangzhou Liheng carton packaging Machinery Manufacturing Co., LTD.

located in Dongguang County economic Development Zone East. North of Beijing and Tianjin, south of Shandong, and Cangzhou iron Lion, Wuqiao acrobatic world adjacent; Beijing-shanghai Railway, 104 National Road, Beijing-Fu high-speed adjacent through, its convenient transportation, production environment is very superior.

Our company specializes in the production of various types of printing presses and a complete set of packaging machinery and equipment, with independent development and research capabilities, to achieve the high-tech level of sustainable development of equipment, and constantly improve the shortcomings of international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, safe automation machinery and equipment direction. Enterprise talent, strong technical force, with high-tech design personnel, precision production equipment, advanced testing means, strict quality management system and a strong technical production team, to ensure product quality and performance laid a solid foundation
