300mm-9999mm Cutting Length Single Facer Corrugated 2 Ply Cardboard Box Production Line

Large Image : 300mm-9999mm Cutting Length Single Facer Corrugated 2 Ply Cardboard Box Production Line

Product Details:

Place of Origin:	China
Brand Name:	yuyuan

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$25,300.00 - $38,000.00/sets
Packaging Details:	Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake.
Supply Ability:	50 Set/Sets per Month

Contact Now

300mm-9999mm Cutting Length Single Facer Corrugated 2 Ply Cardboard Box Production Line

Description

Type:	Packaging Line	Applicable Industries:	Hotels
Showroom Location:	Italy, India, Spain	Condition:	New
Application:	Food	Packaging Type:	Cartons, Film
Packaging Material:	Plastic, Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380v
Dimension(LWH):	3000x1600x2000mm	Warranty:	2 Years
Key Selling Points:	Easy To Operate	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	2 Years
Core Components:	Bearing	Name:	Electric E Flute Single Facer Corrugated Paper Production Line
Width Of Paperboard:	A/B/C/E/F/BC All Kinds Of Corrugated Flute	Machine Speed::	150 Meters/min
Heating Type::	Electric Heating/ Steam Heating	Suitable For::	2 Ply Corrugated Paperboard Production Line
Relevant Corollary Equipment::	Boil/ Slitter Scorer/ Gluer Pasting Machine	Cutting Length:	300mm-9999mm
Cutting Accuracy (Uniform Speed):	±1mm	Main Driving Motor(Servo):	12.5KW
Horizontal Output (Frequency Control):	0.75KW	Port:	Tianjin Port

Product Description

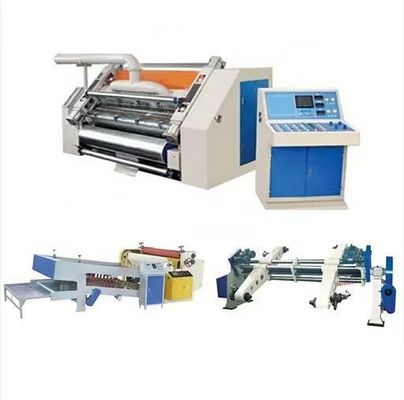

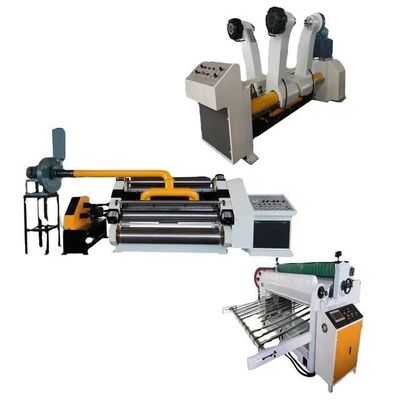

TWO PLY CORRUGATED CARDBOARD PRODUCTION LINE

（1）Hydraulic Mill Roll Stand

Pneumatic brake and spring clutch Hydraulic station

Specification:

Max. working width	1800mm
Min. working width	900mm
Max. paper mill dia	1500mm
Max working pneumatic pressure:	0.6-0.9Mpa
Power requirements:	380V, 50Hz
Length of track for carry paper mill	6000mm

Machine Introduction: *Swing type. *Max. paper roll Dia: 1500mm length: 900-1800mm *Clamping paper roll, moving right-left, arms up-down and paper roll rotation is hydraulic operated. *Support two paper rollers in the meantime, one is working, and another is for spare part. * Adopts “Spring clutch”. * Paper tension controlled by pneumatically operated disc brake, setting the tension easily.

（2)Pre-heater

Max. working width	1800mm
Max working steam pressure:	1.0-1.3Mpa
Steam temperature	160—210 centigrade
Power requirements:	380V, 50Hz
Diameter of heating roller	600mm
Wrap angle adjust range	90—270 degree
Wrap roller diameter	115mm

Machine Introduction: * Accurate grinding and chromed the surface of heating roller and wrap roller, smooth and shining. *Heating roller adopts professional manufacturer product, passed the nation pressure vessel text. *Heating roller and wrap roller adopts plating treatment. *Motorized wrap angle can be suit for different speed.,Exact preheating result can be adjusted, preheating area adjusted by electrical moto *Wrap roller: 2sets, one fix roller, and other one floating roller. *Adopts butterfly seal structure on two sides, save the steam and improve heating efficiency. *Adopts special sealing method, follow firstly grade sealing method in China, passed the China sealing text, with certificate.

Machine Introduction:

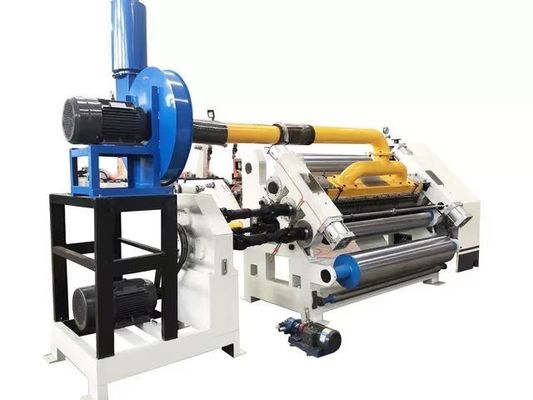

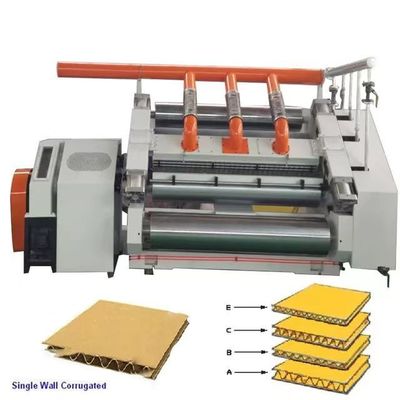

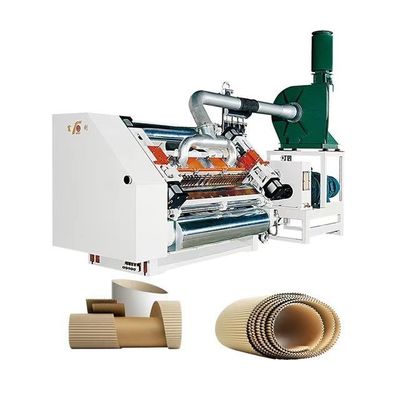

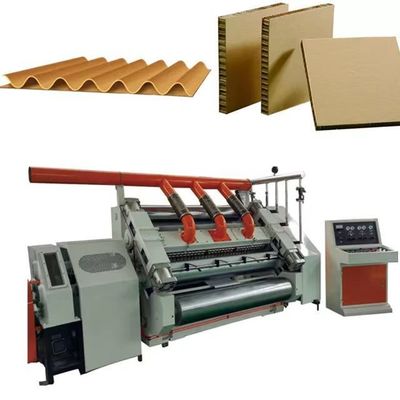

*Design speed: 150m/min. * Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing. *Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment. * Upper and lower corrugated roller are unit assemblage ,the whole corrugated rollers group can be move and quick replacement ,to change flute type quickly *Gluing roller: surface is embossed with netting design and chrome plated. *Glue section are unit assemblage ,whole section can be moved by track ,save maintenance time ,glue part can be running independently r non-independently while stopped . * Frequency conversion motor as main drive ,independent gear box connect with three gimbal axis , inverter to make stepless speed regulation for save power and keep one communication connector for production management . *Press roller: Dia.360mm. with drum. * Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance. *Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system. *With preheating and preconditioning rollers. * Bearing for corrugated rollers,and pressure roller adopt high-temperature lubrication grease to keep running smoothly and durably .

（4) Over bridge

Machine Function: Main frame made by channel steel, and angle steel With protecting handrail and safety pedal on both sides, the operation side is installed with safety ladder, to make sure the safety and convenience of the worker *Vacuum suction tension control,5 inch suction pipe with adjusting valve,draw fan power can be adjusted freely *Electric correcting,and correcting plate is by double guide posts,driving by screw , fast and accuracy to position, steady to move *Take up device two sets, installed on each single facer *Independent frequency motor lifting device, PVC conveyor belt transmission, corrugated paperboard forward wave and smoothly Machine Technical Parameter: Working Width 1800mm Paper Feeding Rollers & Tension Rollers Φ110mm Transport Rollers Φ124mm Paper Feeding Rollers With Belts Φ70mm Take Up Motor 3KW Fan Motor 3KW Paper Width Adjusting Speed Reducer 250W

（5) NC cut off & slitter Cutter For Two layer （Basket Down Stacker）

Machine Function: *Machine configuration: helical cutting knife，5 Group of φ200 circular slitting blade *Storing 200 sets of orders, man-machine interface, the screen displays information, reviewing,modifying,adding and canceling orders at any time *Germany KEB servo system control the motor driving,and high-performance synchronous servo motor *The cutting machine adopts the inlaid steel helical knife structure, and the hard-toothed grinding gear realizes no backlash transmission, with high precision and long service life *The machine base and wallboard adopt gray cast iron, with high strength and strong vibration resistance *Adopt Basket down stacking, the paperboard automatically output after reach setting quantity,conveying section is discharged in three:the first section is cardboard straight output no curve with rolling design,the second sections of the buffer in length, the third section is counting and pneumatically separation Machine Technical Parameter: Working Width 1800mm Design Speed 150m/min Working Speed 120m/min Cutting Length 300mm-9999mm Cutting accuracy (Uniform Speed) ±1mm Upper and Lower knife Shaft Dia φ200mm Main Driving Motor（Servo） 12.5KW Holding Paper Motor: (Frequency Control) 3KW Paper Feeding Motor(Frequency Control) 1.5KW Horizontal output (Frequency Control) 0.75KW

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

HEBEI YUYUAN Packaging machinery co.,ltd
We are one of the biggest manufacturers for corrugated packaging machinery in North of China. Our main products include
completecorrugated paperboard production line, flexo printer slotter die cutter stacker machine, automatic folder gluer and other
cartonmachines. Our company owes perfect technology and we can design machines according to our customers' requirement. We have perfectquality guarantee system .Our engineers have rich experience of installation and serve for our customers all over the
world. The Complete Corrugator Line, Hydraulic Mill Roll Stand, High Speed Single Facer, N. C Cut Off Machine , N.C Slitter Scorer Machine, Folder Gluer Machine, Rotary Slotter Mahcine and Flexo Printer Machine be exported to more than twenty different countries.
We sincerely cooperate with all the customers and do our best to meet all customers' requirements with our best products and
service.

FAQ

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
