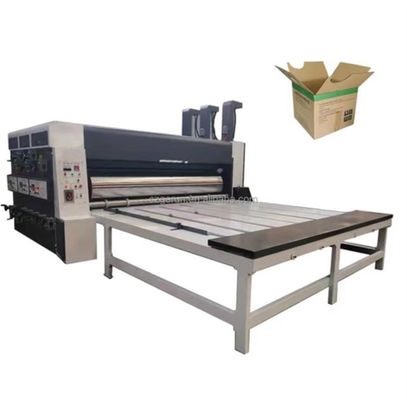

Paper Forming Machine Semi Automatic Printer Slotter with Chain Feeding Production Line

Large Image : Paper Forming Machine Semi Automatic Printer Slotter with Chain Feeding Production Line

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$12,000.00/sets >=1 sets
Packaging Details:	film,container for shipping
Supply Ability:	2 Set/Sets per Month

Contact Now

Paper Forming Machine Semi Automatic Printer Slotter with Chain Feeding Production Line

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	2 Years	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Semi-automatic
Usage:	Paper Forming Machine	Weight:	5000 KG
Warranty:	1 Year	Key Selling Points:	Long Service Life
Brand:	LIHENG	Product Name:	High Quality Semi-automatic Printer Rotary Die Cutting
After-sales Service Provided:	Service Machinery Overseas	Keywords:	Printing Slotting Die-cutting Machine
Type:	Chain Feeding	Color:	Customer's Request
Driven Type:	Electric	Advantage:	High Effective
Feeding Way:	Chain Wheel Feeding	Port:	Tianjin Port,China

Products Description

1.Whole machine electric parts was choice the domestic famous brand, good and steady quality . 2.Complete machine baffle and
important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center
and grinded by digital controlled grinder.
3.All the transmission axles and rollers are made by high quality steel, and processed through tempering and dynamic balance;
plated with rigid chrome and grinded surface.
4.All the transmission gears was used the 48# alloy steel, which is grinded after heat treatment, and it was made by rubbing. It
still maintains the high topping precision.
5.Pneumatic combined control the whole machine. It has the function of counting, alarming, and operating at the back of the
machine.
6.Planetary gear structure. All gears are after fine grinding.
7.Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.

Feeding unit：

Feeding cardboard：Use 12A high Precision chain feeding paper type, double side position, feeding table front and rear can adjust,5mm working table plate.

Printing roller：

1. it is Φ400mm including the plate. 2. Surface of roller is grinded and hard chrome-plated.
3. Treated with balance correction, runs steady and smoothly.
4. Engraves the reference line, Convenience hang plate.
5. In the operation process of edition roll 360°phase electric adjustment, The number automatically adjusts the amount displayed.

Printing pressure roller：

1. Outer diameter: Φ156mm.
2. Surface of roller is grinded and hard chrome-plated.
3. Treated with balance regulating, runs steady and smoothly.
4. Printing pressure roller clearance dial is adjusted manually. Adjusting range: 0-10mm.

Paperboard feeding upper and lower roller：
1.Upper roller: outer diameter: Φ111mm, thickness steel pipe, attached with 4 feeding rings.
2.Lower roller: outer diameter: Φ156mm, thickness steel pipe, the surface is grinded and hard chrome plated. 3.Paperboard feeding
roller clearance dial is adjusted manually. Adjusting range: 0-10mm.

Steel anilox roller：
Outer diameter: Φ216mm.
Surface of roller is grinded, embossed and hard chrome-plated.
Treated with balance correction, runs steady and smoothly.
Mesh number: 200, 220, 250, and 280 for your choice.

Rubber roller：
Outer diameter: Φ180mm.
Surface of the steel pipe is covered with wear-resistant rubber and it is after balance correction.
Rubber in the special high-grinding, the transmission ink effect.

Phase adjust system：
Planet gears structure.
Printing phrase is adjusted computer phase meter control electrically in 360° . (It can be adjusted running or stopping.)
sideways location is adjusted manually. Adjusting distances 10mm。

Crease press deviceThe sheet cardboard gap use manual adjust, and gap trimming self locking device. Have emergency stop device is installed to ensure the safety.
Slotting phrase adjusting system/Box height adjusting system Slotting phrase is adjusted electrically in 360°, Time is fast, high precision.
The phase zero device to ensure the consistency of the slotted position.
The box height adjustment adopts the manual gear structure adjustment, avoids the gear oil pollution board.
Pre-press wheel Upper and lower roller diameter: Φ111mm,, attached with 4 pre-press rings.
Can effectively prevent the phenomenon of broken cardboard.

wheel high pressure shaft, shaft diameter 111mm, hard chrome plated surface.
Using a new type of wire pressing wheels.

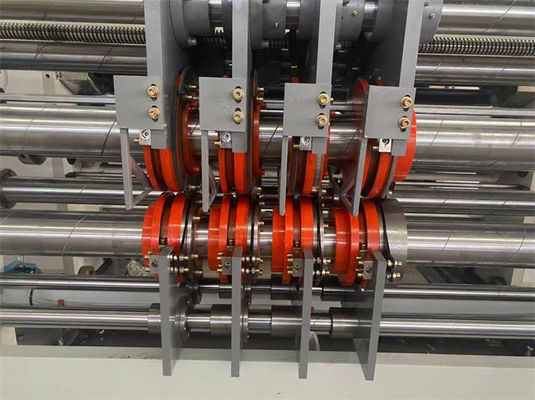

Slitting/slotting knife holder Slotting knife thickness 7mm, High quality alloy steel heat treatment tooth shaped slotting knife.
The diameter of the shaft is 176mm, Surface of roller is grinded and hard chrome-plated, moving smooth.

1.The phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of planetary gearing mechanism.
2.The die cutting roller is made of the high quality steel with the treatment of chrome plated and balance adjustment.
3.Mechanical soft roll is able to lateral movement for 40mm, to make the rubber wear evenly. 4.The soft roller auto self grinding unit improves the usage of rubber sleeve, 3 or 4 times grinding and re-use is available.
5.Automatic compensation of linear velocity can guarantee that die-cutting size for each batch of cartons is in full accord.
6.Imported polyurethane rubber is easy and convenient to install and has a long lifetime, able to die cutting for 12 million
times.
7.The transmission gear is made of high quality steel with the treatment of accurate grinding, has the advantage of low noise and long lifetime.

Model No.	Drum diameter(mm)	The paper width(mm)	Effective printing area	Total power of machine
SMY-2000	Φ300	1900	1700x900	4.0
SMY-2800	Φ400	2700	2500x1200	4.0
SMY-2800	Φ480	2700	2700x1447	4.0
SMY-2800	Φ528	2700	3200x1600	5.5

Product packaging
