Product Details:
Place of Origin: Hebei, China
Brand Name: Yuyuan
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $12,000.00/sets >=1 sets
Packaging Details: film plastic
Supply Ability: 10 Set/Sets per Week
Contact Now

Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line

Description
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining Showroom Location: Egypt, India, Russia, Chile
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 1 Year Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New Automatic Grade: Automatic
Usage: Paper Forming Machine Voltage: 380v 220v
Weight: 2500 KG Warranty: 2 Years
Key Selling Points: Long Service Life After Warranty Service: Video Technical Support
Port: Tianjin Port

Product Description
Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line 0

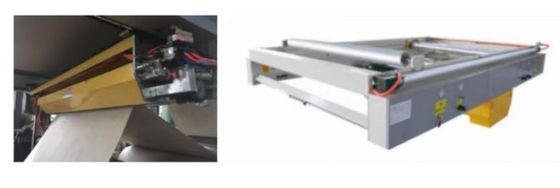

automatic splicer for corrugated carton production line
Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line 1

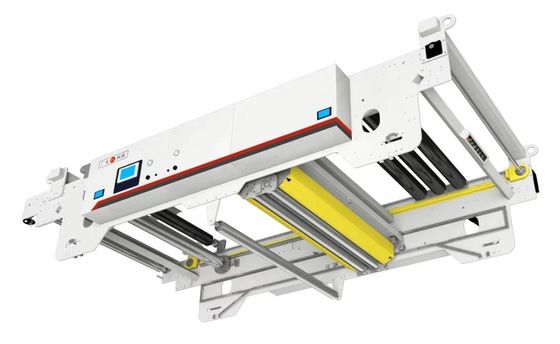

NON-STOP SPLICING
1.Imported Spare Parts To Ensure The Low Failure Rate.
2.With Touch Screen To Help Us Maintain And Monitoring The Data.
3.Control The Tension To Avoid Paper Break.
4.Low Frequency And Easy Maintaining To Guarantee The Low Failure Rate.
Design speed:
250-100m/min
Paper Connection:
overlap connecting
Design width:
the maximum paper width can reach 2550mm
Weight of the original paper:
50g/m2~350g/m2
Paper reaction completion time:
about 1 second
Gas source:
a minimum of 0.6MPa dry clean air source
Power demand:
power supply:380V, 50Hz, 20A control power:12V,24V
Paper frame brake:
pneumatic brake/ magnetic powder brake



Machine Frame Made Of High Quality Carbon Steel With Optimized Design.
Appearance Similar As Bhs,Germany. Strture Similar As Marquip Ward United.

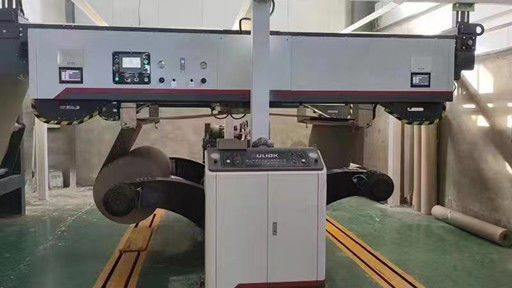

Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line 2
Design speed:
Model300-280m/min(Flute liner)300m/min(Top liner)
Model400-400m/min(Flute liner)380m/min(Top liner)
Paper Connection:
overlap connecting
Design width:
the maximum paper width can reach 2550mm
Weight of the original paper:
50g/m2~350g/m2
Paper reaction completion time:
about 1 second
Gas source:
a minimum of 0.6MPa dry clean air source
Power demand:
power supply:380V, 50Hz, 20A control power:12V,24V
Paper frame brake:
pneumatic brake/ magnetic powder brake
Product Advantage：

1,Paper roll replacement paper operation simple and easy to understand fool concept.
2,Easy access to existing production lines.
3,With a touch screen, through the touch screen diagnosis and maintenance control, and can be remotely processed
4,The user interface is friendly, the control panel is quick.
5,Monitor the length, weight, tension of the base paper, the diameter of the base paper, and the current speed of the equipment.
6,Set the minimum diameter automatic paper picking function.
7,During the whole process of paper picking and during the continuous unwinding of the paper roll.

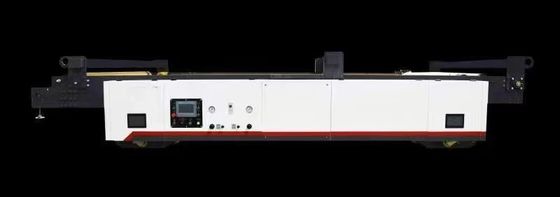

Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line 3
CORE FUNCTION SERVO MOTOR CONTROL ON ACTIVE PAPER FEEDING. High Precision Full Servo Motor Control. Paper Storage Roll System. Quick Response By Servo Motor.
High Precision In Target At Moving Position. Excellent Servo Control System For Accurate Control.
Excellent Performance For Low Weight Paper.

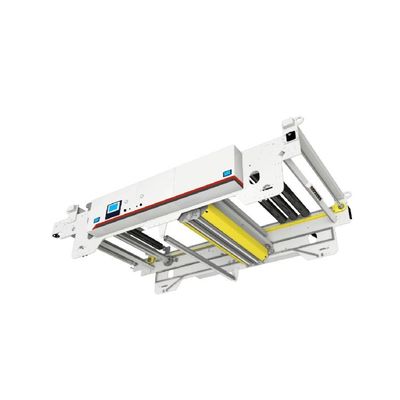

Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line 4

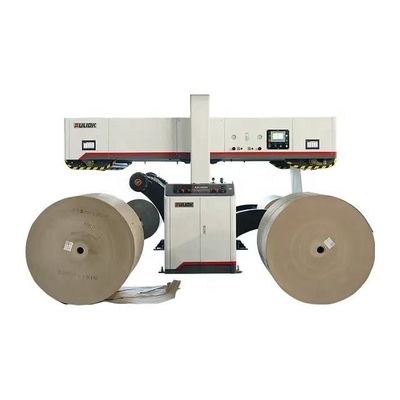

Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line 5
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line 6
Company Profile
Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line 7
Exhibition
Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line 8
Certifications
Video Technical Support After Service Automatic Splicer for Corrugated Carton Production Line 9
Our Service
We deeply know that, excellent and efficient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favorable and satisfactory service for wide clients, we hereby solemnly promise:

♦All the equipments are offered with one year quality warranty. After the guarantee is expired, we offer long-term maintenance
service and supply of parts and components at cost price.

♦The equipments will be delivered accompanied with detailed installation and operation manual and related information.
