Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery

Certification
China Cangzhou Yuyuan Imp & Exp Trade Co., Ltd. certification
I'm Online Chat Now

Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery

Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery
Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery

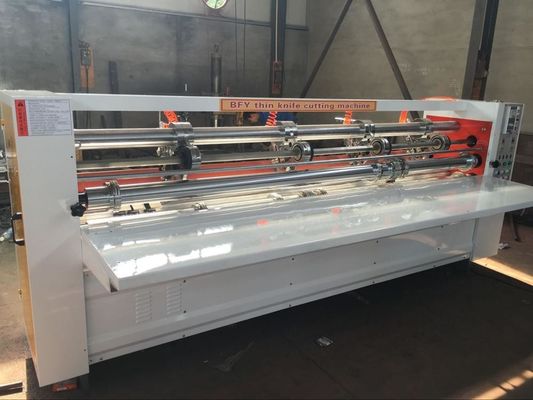

Large Image :  Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery

Product Details:
Place of Origin: Hebei, China
Brand Name: Liheng
Certification: CE Certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $3,500.00/sets >=1 sets
Packaging Details: Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake in the container.
Supply Ability: 30 Set/Sets per Month

Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery

Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C Showroom Location: Egypt, Viet Nam, India, Russia, Thailand, Kenya, South Korea, Chile
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 1 Year Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New Automatic Grade: Automatic
Usage: Paper Forming Machine Voltage: 220V
Dimension(L*W*H): 2910*1000*1400mm Weight: 2000 KG
Warranty: 1 Year Key Selling Points: Long Service Life
Product Name: High Quality Nc Computer Thin Knife Slitter Scorer Function: Cardboard Box Making
Driven Type: Electricl Color: User Defined
Packaging Material: Plastic Film Application: Machinery & Hardware
Width Of Paperboard: 2500mm Thickness Of Paperboard: 3-15mm
Paper Feeding Speed: 150meter/min Port: Tianjin Port

Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery 0
Products Description

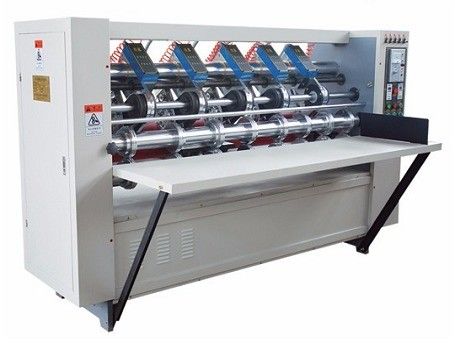

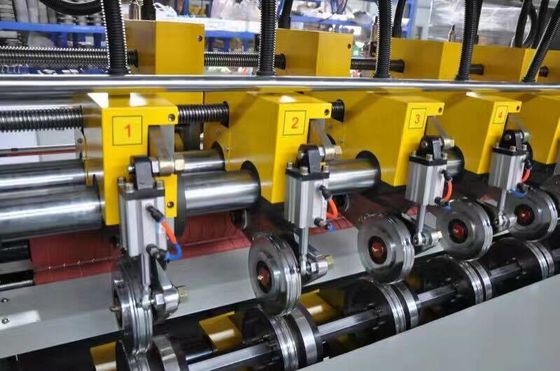

Details Images

high quality full automatic NC computer thin knife

/blade slitter scorer machinery /corrugated carton box machine


1.After by former pressed line paper,double roller,strings,cardboard smooth operation.
2.Using electric adjusting clearance,start the automatic locking,improve the degree of automatic of the machine.The precise easy to use,adjustment,save time,reduce the labor intensity.

3.Cutting department:adopt high quality tungsten alloy blade sharp,long service life and cutting out the cardboard incision neatly,without frecturing.

4.Line pressing indentation department adopts five creasing clearance synchronous adjustment,linear and beautiful,not line ,easy to bend.
5.Automatic appliance used domestic brand to be reliable in performance.


Model
LH-2000
LH-2500
width of paperboard
2000mm
2500mm
thickness of paperboard
3-15mm
3-15mm
paper sending speed
130 meter/min
130 meter/min
min.paper splitting gap
145mm
145mm
qty of slitting blades
3
4
qty of line pressing wheels
4
6
motor power
3kw
3kw
external dimension (L/W/H)
2410*1450*1350mm
2910*1450*1350mm
Product packaging
Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery 1
Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake.
Company Profile
Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery 2
Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery 3
Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery 4
Paper Forming Machine Full Automatic NC Computer Thin Knife Slitter Scorer Machinery 5
Hebei Liheng Packaging Machinery Co.,Ltd is specialized in the production of various kinds of carton equipment of the well-know enterprise.

Factory of over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customers.

We are specialized in producing 3ply, 5ply, 7ply corrugated production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipments.

Products are exported to Russia, the Middle East, Africa, Southeast Asia, EU and other countries and through out the country. Product quality and enterprise reputation get the high praise at home and abroad.

Over the years the company take "the quality first" "integrity-based" compose always meet users' requirements as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create package future.
Our Service
We deeply know that, excellent and efficient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favorable and satisfactory service for wide clients, we hereby solemnly promise:

♦All the equipments are offered with one year quality warranty. After the guarantee is expired, we offer long-term maintenance service and supply of parts and components at cost price.

♦The equipments will be delivered accompanied with detailed installation and operation manual and related information.
FAQ
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. Weneed your machines running in order to keep your business running.

2.Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1) Customers to send the technical people to our factory for checking the quality.
2)We can send the technicians to the buyer`s factory for the installation of the machine.
3)Good aftersales-service, its free of charge during the warranty period.

3.Q:What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freel, but you need pay the express cost yourself. if after warranty period, we can look at negotiation to solve the problems, and we sup ply the technical support for the whole life of the equipment.

4.Q:How to play order?
Inquiry---confirm the profile drawings and price----confirm the PI arrange the deposit or L/C---then OK

5.Q:How to visit our company:
1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you at the station.
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
