Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load

Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load
Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load

Large Image :  Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load

Product Details:
Place of Origin: Hebei, China
Brand Name: YUYUAN
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $27,000.00 - $30,000.00/sets
Packaging Details: Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake in the container.
Supply Ability: 5 Set/Sets per Month
Contact Now

Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load

Description
Type: Packaging Line Applicable Industries: Food & Beverage Factory, Farms, Other
Showroom Location: Pakistan, Russia Condition: New
Application: Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco Packaging Type: Cartons
Packaging Material: Paper Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V/50HZ
Dimension(L*W*H): 2830*1260*2000(mm) Weight: 2500 KG
Warranty: 2 Years Key Selling Points: Long Service Life
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Max Slitting Size: 1850-2550mm Min Slitting Size: 130mm
Min Scorer Width: 130mm Scorer Height: 0-12mm
Blade Size: 260*158 Blade/scorer: 4/6 ,5/8 ,6/10 ,7/12
Machine Dimension: 2830*1260*2000(mm)/3130*1260*2000(mm)/3330*1260*2000(mm) Power: 10KW
Product Name: Thin Blade Slitter Scorer Machine Port: Tianjin Port

Products Description

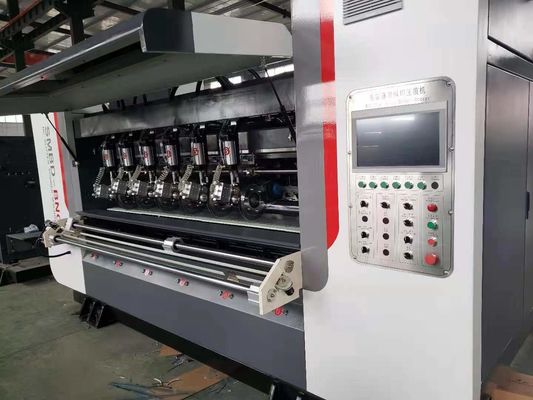

Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load 0

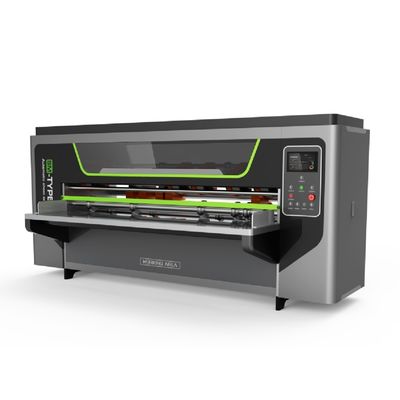

Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load 1
Human machine interface —PLC control，The system for robot operating system more humanized, simple structure, easy to maintain. 1.Manual/auto feeder is available 2. Pre pressing roller,slitting blade and scorer holder are auto adjusted 3.Grinding knife is auto/manual 4.Cardboard thickness and press power are auto adjusted 5.Jog for fine-adjusted 6.Auto counter 7.Slitting and press line precision ±0.5mm Auto slitter scorer : 8.Human machine interface —PLC control，cutter paper thin blade change order use stand alone stepper motor control,auto change order speed 1-20S,error precision±0.5 mm. 9.Operation humanized.，no technical content，worker use operation use easy。 10. Slitting part:Adopt high quality tungsten steel thin blade,sharp and long worklife,slice more tidy,non-pressing and non-burr. 11.This machine can memory 999 group order，don’t need stop machine can change order and manual change order.
Model
SMBD-CNC-1800
SMBD-CNC-2200
No.s of slitting scoring
4/6    5/8    6/10
Max.production speed
150m/min
150m/min
Max.feeding width
The Max.slitting between the two blades:2250mm
The Max.slitting between the two blades:2750mm
Max.slitting width
2500mm
3000mm
Min.slitting width
200mm
200mm
Min.feeding length
200mm
200mm
Min.scoring distance
40*135mm
40*135mm
Gap adjustment
Auto
Auto
Main motor power
15kw
17kw
Dimensions L*W*H
1570*3450*1500mm
1570*3950*1500mm
Weigh
3780kg
3980kg
Packing & Delivery

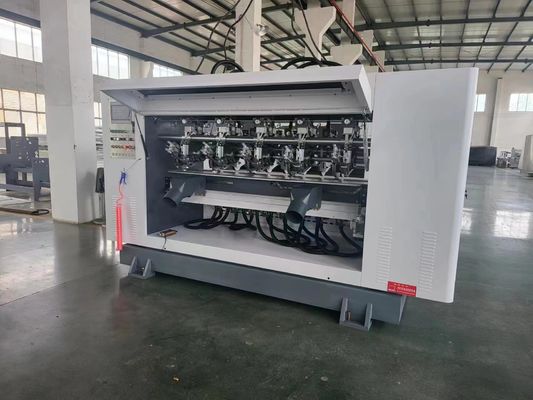

Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load 2

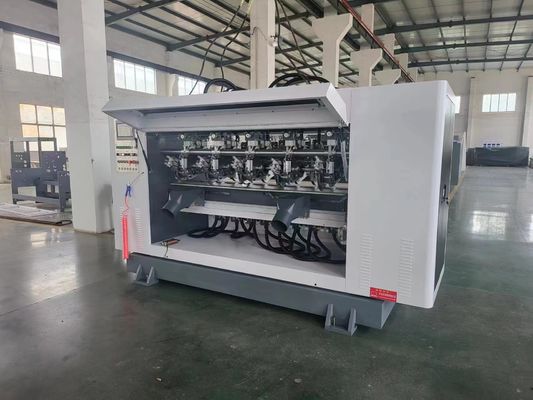

Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load 3
Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake in the container.
Company Profile
Hebei LIHENG Packaging machinery Co.,LTD, located at DONGGUANG county economic development zone east. Beilian jingjin, south by shandong, with cangzhou iron lion, wuqiao acrobatic world adjacent; The beijing-shanghai railway, 104 national highway and beijing-fuzhou expressway adjacent to it, has convenient transportation and excellent production environment.
Our factory specializing in the production of all kinds printing machine and a complete set of packaging machinery and equipment, with independent development and research ability, to achieve sustainable development of high-tech equipment level, and constantly improve the deficiency existing in international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, the safety of automated machinery and equipment. Enterprise recruitment of talent, strong technical force, with high-tech design, sophisticated production equipment, advanced detection means, strict quality management system and a skilled production team, in order to ensure the quality of the product performance has laid a solid foundation.
Over the years, enterprises follow the "innovation, the pursuit of excellence, frolic in the waves waves, have the courage to
lead," the purpose, make the product quality improved steadily. And has a reputation for timely delivery and thoughtful service well received by new and old customers.
I plant to the revitalization of China's packaging industry as own duty, sincerely cooperate with the masses of users. In the
future, we will be quality products and perfect after-sales service to meet customers needs.
Full Computer Thin Blade Slitter Scorer for High Precision Cutting of 2500 KG Load 4
Certifications
FAQ
1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(20.00%),South America(15.00%),Eastern Europe(15.00%),South Asia(10.00%),Africa(8.00%),Eastern Asia(8.00%),Southeast Asia(7.00%),Mid East(7.00%),North America(5.00%),Oceania(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Production Line/Printer Slotter Die Cutting Machine/Folder Gluer

4. why should you buy from us not from other suppliers?
Cangzhou Yuyuan IMP&EXP CO.,LTD is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese

Contact Details
Cangzhou Yuyuan Imp & Exp Trade Co., Ltd.

Contact Person: Mr. Tony wu

Tel: 86-13653277171
