Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging

All Products

Corrugated Cardboard Production Line

(785)

Partition Board Machine

(40)

Paper Sheeter Machine

(38)

Thin Blade Slitter Scorer Machine

(174)

Carton Stitching Machine

(135)

NC Cut Off Machine

(75)

Die Cutting And Creasing Machine

(160)

Automatic Folder Gluer

(33)

Semi Automatic Laminating Machine

(210)

Folder Gluer Machine

(196)

Single Facer Machine

(204)

Flexo Printing Machine

(661)

Ungrouped

(52)
Certification
China Cangzhou Yuyuan Imp & Exp Trade Co., Ltd. certification
I'm Online Chat Now

Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging

Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging

Large Image :  Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging

Product Details:
Place of Origin: China, Hebei China
Brand Name: LIHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $3,500.00 - $4,500.00/sets
Packaging Details: Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake.
Supply Ability: 50 Set/Sets per Month
Contact Now

Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging

Description
Warranty: 2 Years, 2 Years Type: Other
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Other, Advertising Company Showroom Location: Egypt, Italy, Brazil, India, Thailand, Morocco, Romania, Bangladesh
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 2 Years Core Components: PLC, Motor
Condition: New Application: Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: Cartons, Film Packaging Material: Plastic, Paper
Automatic Grade: Semi-automatic Driven Type: Other
Voltage: 380V/50HZ Power: 6kw
Weight: 3200 KG Dimension(L*W*H): Other
Key Selling Points: Easy To Operate Nail Number: 2-99
Minimum Paper Height: 400mm Minimum Flap Size: 80(Standard) 20(Optional)
Minimum Height: 200mm Maximum Paper Height: 2900mm
Maximum Flap Size: 450(Standard) 600(Optional) Nail Distance: 30-150mm
Maximum Height: 2000mm Port: Tianjin Port

Product Description
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 0
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 1
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 2
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 3
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 4
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 5
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 6

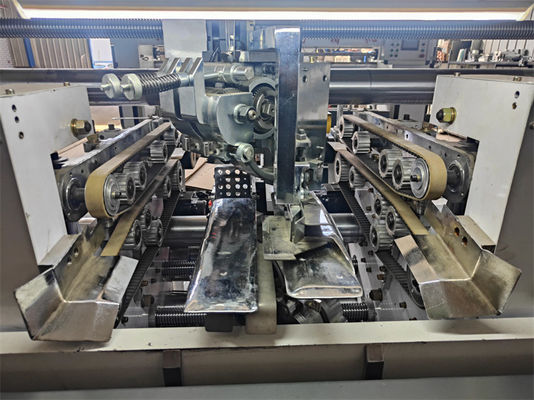

★The entire set of nail heads are made of Taiwan original parts, and the service life of the head is longer.

★ It only takes one minute to change the carton size and adjust the nail distance of the carton, which greatly saves time and is easy to operate.

★There is an automatic counting function in the back section, and the number of finished products can be divided and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packing and binding.

★ The front paper feeding section automatically counts, and the paper feeding table is equipped with a photoelectric sensor, which automatically rises when feeding paper.

★ Paper feeding height: 900mm.

★ Mechanical speed: 600 nails/min.

★ One set of dual purpose, can nail single-chip nailed cartons, double-chip nailed cartons, and irregular cartons.

★ Reinforced nails, single nails, double rows of nails can be nailed, all at once.

★ The paper feeding department automatically counts, and the finished product is sent out for binding.

★ Suitable for small and medium-sized cartons, fast and labor saving.

★ Adjust the nail distance, use the computer to set the nail distance automatically, and the nail distance can be adjusted at will from 30-150mm;

★ Automatic wire feeding system, 20KG large flat wire, saving time.

★ Features of this machine: three-layer, five-layer, and seven-layer carton thickness adjustment is fully computer controlled, fast and accurate.

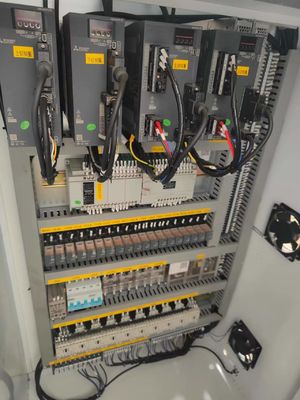

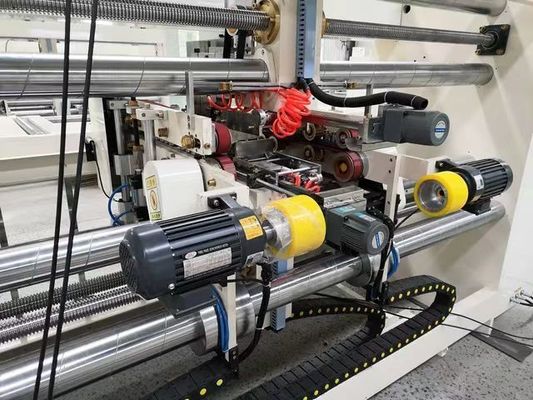

★ This machine adopts four servo motors (namely two head motors and two feeding motors).

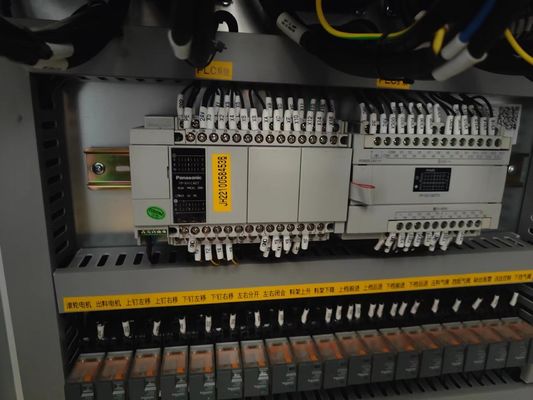

★ Isolation and voltage-stabilizing transformer protection device of the whole electrical appliance can better protect the service life of the whole computer electrical appliances.

★ The latest machine adopts a full computer to automatically adjust all sizes, and automatically adjusts the size of different models in one minute, fast and accurate, and can store 1,000 orders.

★ Binding method: double oblique nail or single oblique nail/reinforced nail.
Specification
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 7
Model and parameters
SDJ-1600D
SDJ-2000
SDJ-2500

Maximum paper size (A+B) * 2 (mm)
3200
4000
5000

Minimum paper size (A+B) * 2 (mm)
980
980
980
Maximum carton length A mm
1480
1880
2380

Minimum carton length A mm
370
370
370

Maximum carton width B mm
800
1000
1250

Minimum carton width B mm
120
120
120

Maximum paper height (C+D+C) (mm)
2900
2900
2900

Minimum paper height (C+D+C) (mm)
400
400
400

Maximum flap size C (mm)
450(Standard）
600（Optional）
450(Standard）
600（Optional）
450(Standard）
600（Optional）

Minimum flap size C (mm)
80(Standard）
20（Optional）
80(Standard）
20（Optional）
80(Standard）
20（Optional）

Maximum height D (mm)
2000
2000
2000

Minimum height D (mm)
200
200
200

Max tongue width (mm)
40
40
40

Nail distance mm
30-150
30-150
30-150

Nail number
2-99
2-99
2-99

Nail speed (times/mim)
600
600
600
Machine weight (T)
3.0
3.2
3.5
Recommend Products
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 8
Packing & Delivery
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 9
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 10
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 11
Exhibition
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 12
Certifications
Semi Auto Carton Box Forming Machine Stitching Cardboard Stapler for Food Packaging 13
FAQ
1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(20.00%),South America(15.00%),Eastern Europe(15.00%),South Asia(10.00%),Africa(8.00%),Eastern Asia(8.00%),Southeast Asia(7.00%),Mid East(7.00%),North America(5.00%),Oceania(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Production Line/Printer Slotter Die Cutting Machine/Folder Gluer

4. why should you buy from us not from other suppliers?
Cangzhou Yuyuan IMP&EXP CO.,LTD is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
