Retail Corrugated Paperboard Production Line with Technical Support After Service

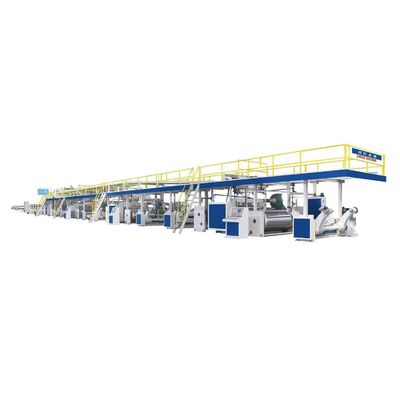

Large Image : Retail Corrugated Paperboard Production Line with Technical Support After Service

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$500,000.00/sets >=1 sets
Packaging Details:	Plastic film packaging, fixed with steel wire in the container
Supply Ability:	1000 Set/Sets per Year

Contact Now

Retail Corrugated Paperboard Production Line with Technical Support After Service

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine, Paper Pakaging Industry	Voltage:	380V
Dimension(LWH):	3000x1600x2000mm	Weight:	4500 KG
Warranty:	2 Years	Key Selling Points:	High-accuracy
Brand:	LIHENG	Product Name:	Corrugated Paper Production Line
After-sales Service Provided:	Service Machinery Overseas	Function:	Cardboard Box Making
Keywords:	Carton Box Making Machine Corrugated	After Warranty Service:	Technical Support
Type:	Corrygated Carton Box Packing Machine	Color:	Customer's Request
Width Of Paperboard:	A/B/C/E/F/BC All Kinds Of Corrugated Flute	Port:	Tianjin

Product Description

2/3/5/7 Ply Corrugated Cardboard Production Line

Use and Characteristics:

This production line is available in large amount automatic production, which can produce corrugated paperboard correspond to national standard with high quality, and adopted concentrated control, operated and repaired easily, safely, reliable, reducing manpower, This production line adopts international energy saving technology with oil heating,which can saving 40 percents energy than steam heating,So this can reduce costs effectively. lt's an economical production in big, middle paperboard company.

Total Length	40-70m
Total Power	100-200Kw
Product Type	Frame with shaft、Frame without shaft
Corrugated paperboard marching	Diameter of corrugated rouer: 280-406mm, electrv adjust speed moter used.
Double cylinder gum mounting marchine	On the adoption, inside two layers draw the gun, dascend to carry the paper lead the paper roller.
Oven	Total length 7.8m, combined with 9-18 heating flocks.
Setting Part	Total length 3.8-5 m, combined weith some pairs of symmetrical shafts.
Horizontal,Lengthuays slicing marchine	Common knife or superthin knife selected based on customer's demand

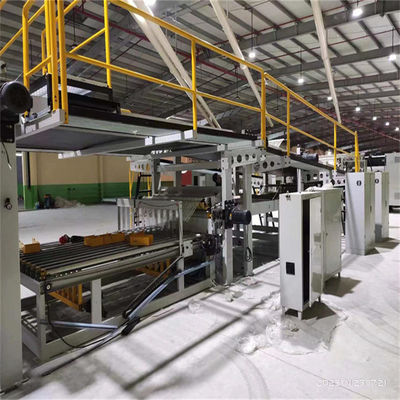

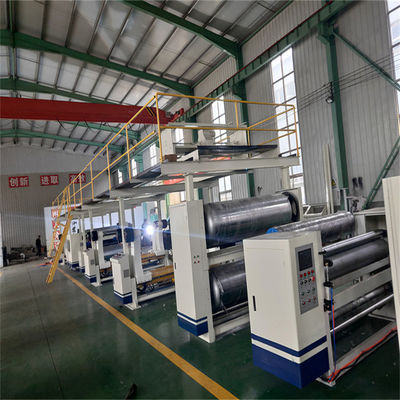

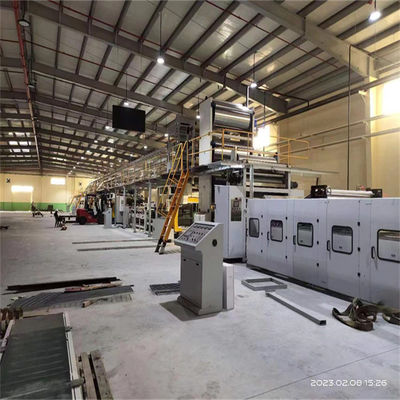

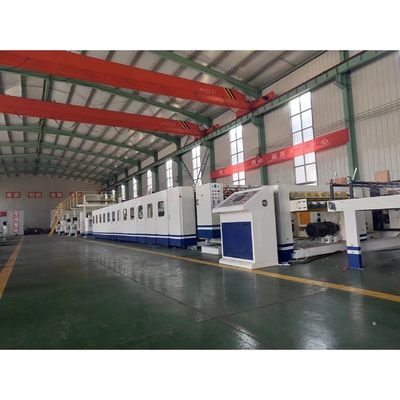

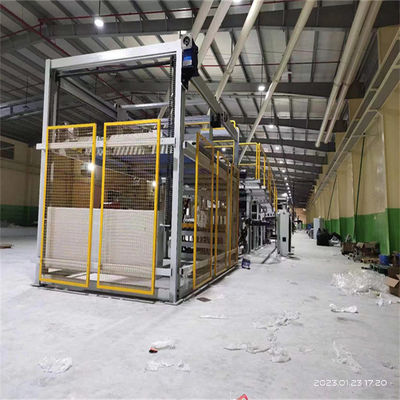

Details Images

Hydraulic Mill Roll Stand
Pneumatic brake and spring clutch Hydraulic station

Machine Introduction: *Swing type. *Max. paper roll Dia: 1500mm length: 900-1800mm *Clamping paper roll, moving right-left, arms up-down and paper roll rotation is hydraulic operated. *Support two paper rollers in the meantime, one is working, and another is for spare part. * Adopts “Spring clutch”. * Paper tension controlled by pneumatically operated disc brake, setting the tension easily.

Pre-heater

Machine Introduction:

* Accurate grinding and chromed the surface of heating roller and wrap roller, smooth and shining.

*Heating roller adopts professional manufacturer product, passed the nation pressure vessel text.

*Heating roller and wrap roller adopts plating treatment.

*Motorized wrap angle can be suit for different speed.,Exact preheating result can be adjusted, preheating area adjusted by electrical moto

*Wrap roller: 2sets, one fix roller, and other one floating roller.

*Adopts butterfly seal structure on two sides, save the steam and improve heating efficiency.

*Adopts special sealing method, follow firstly grade sealing method in China, passed the China sealing text, with certificate.

Single Facer

* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing. * Frequency conversion motor as main drive ,independent gear box connect with three gimbal axis , inverter to make stepless speed regulation for save power and keep one communication connector for production management . *Press roller: Dia.364mm. with drum. * Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance. *Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.

Over bridge

Machine Function: *Main frame made by channel steel, and angle steel With protecting handrail and safety pedal on both sides, the operation side is installed with safety ladder, to make sure the safety and convenience of the worker. *Vacuum suction tension control,5 inch suction pipe with adjusting valve,draw fan power can be adjusted freely. *Electric correcting,and correcting plate is by double guide posts,driving by screw , fast and accuracy to position, steady to move. *Take up device two sets, installed on each single facer. *Independent frequency motor lifting device, PVC conveyor belt transmission, corrugated paperboard forward wave and smoothly.

NC cut off

Machine Function:

*Machine configuration: helical cutting knife，5 Group of φ200 circular slitting blade *Storing 200 sets of orders, man-machine interface, the screen displays information，reviewing,modifying,adding and canceling orders at any time.
*Germany KEB servo system control the motor driving,and high-performance synchronous servo motor *The cutting machine adopts the
inlaid steel helical knife structure, and the hard-toothed grinding gear realizes no backlash transmission, with high precision
and long service life *The machine base and wallboard adopt gray cast iron, with high strength and strong vibration resistance.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
