Fully Automatic Single Corrugated Slitting Cutting stacking Machine Uniform Speed Made

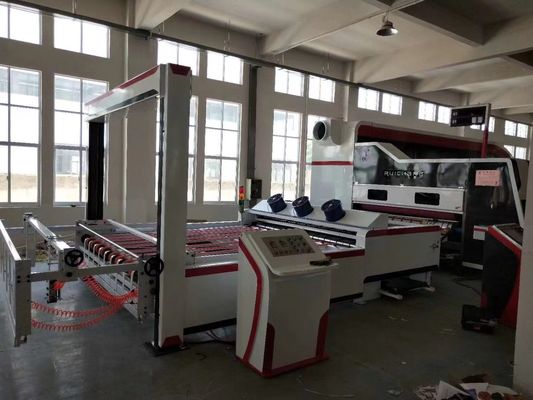

Large Image : Fully Automatic Single Corrugated Slitting Cutting stacking Machine Uniform Speed Made

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$30,000.00/sets >=1 sets
Supply Ability:	1 Set/Sets per Month

Contact Now

Fully Automatic Single Corrugated Slitting Cutting stacking Machine Uniform Speed Made

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	India, None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine, Convenient Collection Paper	Voltage:	380V
Dimension(LWH):	870028903200	Weight:	4500 KG
Warranty:	1 Year	Key Selling Points:	High-accuracy
Product Name:	Corrugated Paper Production Line	Width Of Paperboard:	A/B/C/E/F/BC All Kinds Of Corrugated Flute
Heating Type:	Electric Heating/ Steam Heating	Relevant Corollary Equipment:	Boil/ Slitter Scorer/ Gluer Pasting Machine
Cutting Length:	300mm-9999mm	Cutting Accuracy (Uniform Speed):	±1mm
Main Driving Motor(Servo):	12.5KW	Horizontal Output (Frequency Control):	0.75KW
Driven Type:	Electric	Port:	Tianjin Port

Product descriptions from the supplier

Products Description

Right Angle Conveyor

The machine adopts automatic continuous paper feeding mode, and the cardboard output by the high-speed printing machine is transported to the bed by the paper receiving rack Stage. The bed is automatically raised with the stacking height of the cardboard, and when the cardboard is stacked to the predetermined height, the paper bracket is self-supporting Move close, catch the cardboard to complete the stacking work. Using this machine to stack cardboard, greatly reduce labor Dynamic strength, improve work efficiency, can save 2-3 people.

Model number	QZDJ 2600型	QZDJ 2800型	QZDJ 3000型	QZDJ 3200型
Gantry width mm	2600	2800	3000	3200
Paper width mm	2400	2600	2800	3000
Stack height mm	1700	1700	1700	1700
Supporting power kw	6.75~6.9	6.75~6.9	6.75~6.9	6.75~6.9
Machine shape Length, width and height	8700	8700	8700	8700
		2890	3090	3290	3510
		3200	3200	3200	3200
