Flute Lamination Machine with Small Automatic Cardboard Laminating 13.5m x 2m x 2.9m

Large Image : Flute Lamination Machine with Small Automatic Cardboard Laminating 13.5m x 2m x 2.9m

Product Details:

Place of Origin:	Hebei, China
Brand Name:	Liheng

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$26,000.00/sets 1-1 sets

Contact Now

Flute Lamination Machine with Small Automatic Cardboard Laminating 13.5m x 2m x 2.9m

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	India, Russia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	2 Years	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine	Voltage:	380v
Dimension(LWH):	13.5m X 2m X 2.9m	Weight:	2000 KG
Warranty:	2 Years	Key Selling Points:	Long Service Life

Product Description

Specification

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

FAQ

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Products Description

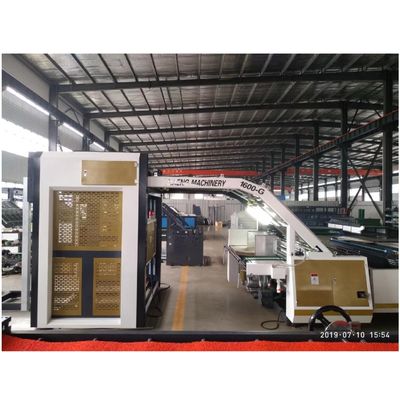

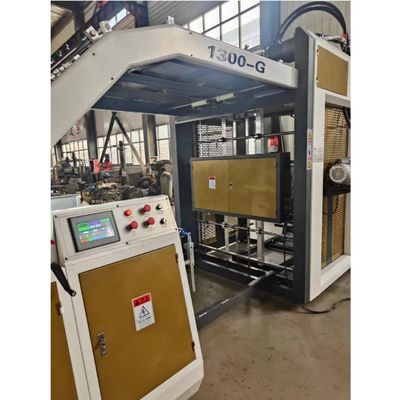

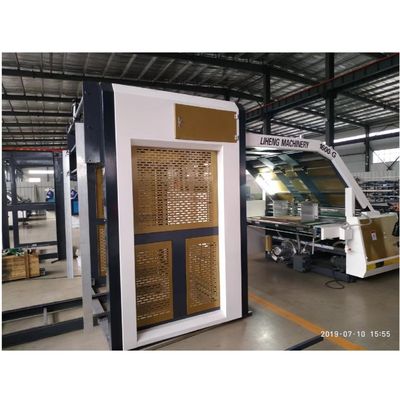

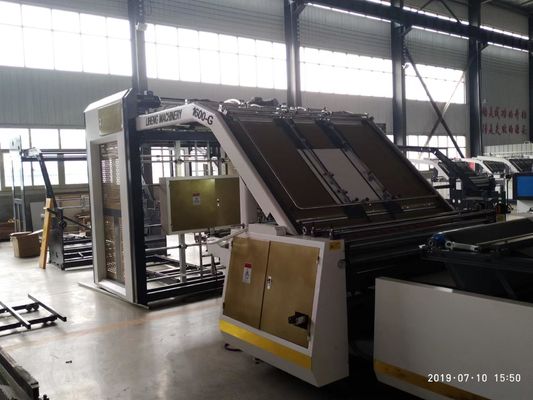

Our company manufacture professionally LH-S series of Automatic Flute Laminator used for printing and packaging industry on the cardboard to cardboard, corrugated to cardboard for fluting, the application of corrugated are A, B, C, D, E, F, N treng , three, five, seven story can work, fluted a good flatness of the paper, high accuracy.

Well-known manufacturers of genuine products are adopted in the main parts of machine, It is long life, good stability. The world's well-known brands products are adopted in electrical parts, imported bearings is adopted in the key parts, to ensure the stability of the whole performance.

Machine with good stability and accuracy of the mounted, easy use, low wear and tear, saving time, the advantages of easy maintenance.

Specification

Model	QZD-1300	QZD-1450	QZD-1600
Maximum paper size (W × L)	1300 × 1100mm	1450 × 1100mm	1600 × 1100mm
Minimum paper size (W × L)	350 × 350mm	350 × 350mm	450 × 450mm
Lamination precision	≤±1.5mm	≤±1.5mm	≤±1.5mm
Max mechanical speed	6000Sheet / h	6000Sheet / h	6000Sheet / h
The total mechanical power	12kw	12kw	13kw
General machinery	12.5m	12.5m	15m
Machine gross weight	6.8T	7.2T	8.0T

For more details, please click here

Product packaging

Recommend Products

Company Profile

Our Advantages

Certifications

Exhibition

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
