Uniform Speed Corrugated Cardboard Production Line ±1mm Cutting Accuracy 0.75KW Output

Name: Uniform Speed Corrugated Cardboard Production Line ±1mm Cutting Accuracy 0.75KW Output
Brand: liheng
SKU: liheng
Price: 500 USD
Availability: InStock
Rating: 4.5 (142 reviews)

All Products

Corrugated Cardboard Production Line
(785)

Partition Board Machine
(40)

Paper Sheeter Machine
(38)

Thin Blade Slitter Scorer Machine
(174)

Carton Stitching Machine
(135)

NC Cut Off Machine
(75)

Die Cutting And Creasing Machine
(160)

Automatic Folder Gluer
(33)

Semi Automatic Laminating Machine
(210)

Folder Gluer Machine
(196)

Single Facer Machine
(204)

Flexo Printing Machine
(661)

Ungrouped
(52)

Certification

I'm Online Chat Now

Uniform Speed Corrugated Cardboard Production Line ±1mm Cutting Accuracy 0.75KW Output

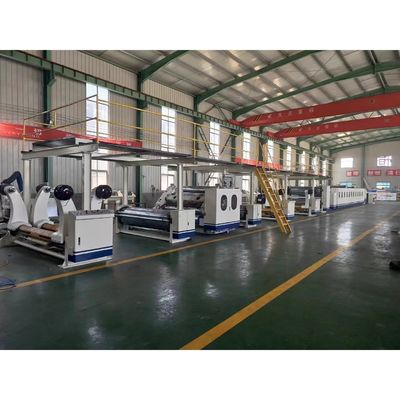

Large Image : Uniform Speed Corrugated Cardboard Production Line ±1mm Cutting Accuracy 0.75KW Output

Product Details:

Place of Origin:	Hebei, China
Brand Name:	liheng

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$500,000.00/sets >=1 sets
Packaging Details:	film,container for shipping
Supply Ability:	2 Set/Sets per Month

Contact Now

Uniform Speed Corrugated Cardboard Production Line ±1mm Cutting Accuracy 0.75KW Output

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine	Voltage:	220v
Dimension(LWH):	300016002000	Weight:	4500 KG
Warranty:	1 Year	Key Selling Points:	Competitive Price
Name:	Corrugated Paper Production Line	Width Of Paperboard:	A/B/C/E/F/BC All Kinds Of Corrugated Flute
Heating Type::	Electric Heating/ Steam Heating	Relevant Corollary Equipment::	Boil/ Slitter Scorer/ Gluer Pasting Machine
Cutting Length:	300mm-9999mm	Cutting Accuracy (Uniform Speed):	±1mm
Main Driving Motor(Servo):	12.5KW	Horizontal Output (Frequency Control):	0.75KW
Port:	Tianjin Port,China

Product Description

Specification

item	value
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition	New
Automatic Grade	Automatic
Usage	Paper Forming Machine
Place of Origin	China
	Hebei
Brand Name	liheng
Voltage	220v
Dimension(LWH)	300016002000
Weight	4500KG
Warranty	1 Year
Key Selling Points	Competitive Price
Name	Corrugated Paper Production Line
Width of paperboard	A/B/C/E/F/BC all kinds of corrugated flute
Heating type:	Electric heating/ steam heating
Relevant Corollary Equipment:	Boil/ slitter scorer/ gluer pasting machine
Cutting Length	300mm-9999mm
Cutting accuracy (Uniform Speed)	±1mm
Main Driving Motor(Servo)	12.5KW
Horizontal output (Frequency Control)	0.75KW

Product Description

Details Images

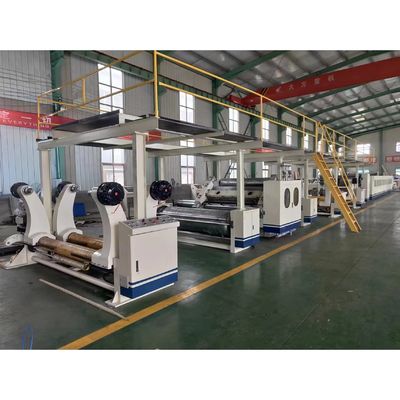

Hydraulic Mill Roll Stand
Pneumatic brake and spring clutch Hydraulic station

Machine Introduction: *Swing type. *Max. paper roll Dia: 1500mm length: 900-1800mm *Clamping paper roll, moving right-left, arms up-down and paper roll rotation is hydraulic operated. *Support two paper rollers in the meantime, one is working, and another is for spare part. * Adopts “Spring clutch”. * Paper tension controlled by pneumatically operated disc brake, setting the tension easily.

Pre-heater

Machine Introduction:

* Accurate grinding and chromed the surface of heating roller and wrap roller, smooth and shining.

*Heating roller adopts professional manufacturer product, passed the nation pressure vessel text.

*Heating roller and wrap roller adopts plating treatment.

*Motorized wrap angle can be suit for different speed.,Exact preheating result can be adjusted, preheating area adjusted by electrical moto

*Wrap roller: 2sets, one fix roller, and other one floating roller.

*Adopts butterfly seal structure on two sides, save the steam and improve heating efficiency.

*Adopts special sealing method, follow firstly grade sealing method in China, passed the China sealing text, with certificate.

Single Facer

* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing. * Frequency conversion motor as main drive ,independent gear box connect with three gimbal axis , inverter to make stepless speed regulation for save power and keep one communication connector for production management . *Press roller: Dia.364mm. with drum. * Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance. *Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.

Over bridge

Machine Function: *Main frame made by channel steel, and angle steel With protecting handrail and safety pedal on both sides, the operation side is installed with safety ladder, to make sure the safety and convenience of the worker. *Vacuum suction tension control,5 inch suction pipe with adjusting valve,draw fan power can be adjusted freely. *Electric correcting,and correcting plate is by double guide posts,driving by screw , fast and accuracy to position, steady to move. *Take up device two sets, installed on each single facer. *Independent frequency motor lifting device, PVC conveyor belt transmission, corrugated paperboard forward wave and smoothly.

NC cut off

Machine Function:

*Machine configuration: helical cutting knife，5 Group of φ200 circular slitting blade *Storing 200 sets of orders, man-machine interface, the screen displays information，reviewing,modifying,adding and canceling orders at any time.
*Germany KEB servo system control the motor driving,and high-performance synchronous servo motor *The cutting machine adopts the
inlaid steel helical knife structure, and the hard-toothed grinding gear realizes no backlash transmission, with high precision
and long service life *The machine base and wallboard adopt gray cast iron, with high strength and strong vibration resistance.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Recommend Products

Company Profile

Cangzhou Liheng carton packaging Machinery Manufacturing Co., LTD.

located in Dongguang County economic Development Zone East. North of Beijing and Tianjin, south of Shandong, and Cangzhou iron Lion, Wuqiao acrobatic world adjacent; Beijing-shanghai Railway, 104 National Road, Beijing-Fu high-speed adjacent through, its convenient transportation, production environment is very superior.

Our company specializes in the production of various types of printing presses and a complete set of packaging machinery and equipment, with independent development and research capabilities, to achieve the high-tech level of sustainable development of equipment, and constantly improve the shortcomings of international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, safe automation machinery and equipment direction. Enterprise talent, strong technical force, with high-tech design personnel, precision production equipment, advanced testing means, strict quality management system and a strong technical production team, to ensure product quality and performance laid a solid foundation

Certifications

Exhibition

FAQ

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west
station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways
you want.
