Chemical Treated Semi-Automatic Flute Laminating Machine for Carton Paperboard Lamination

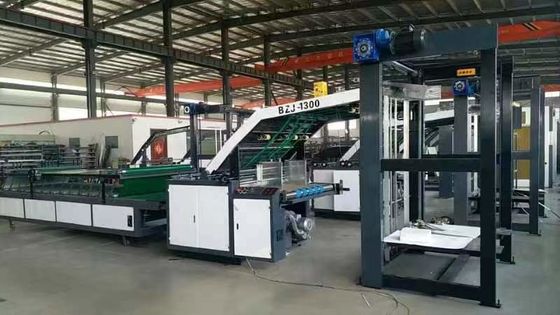

Large Image : Chemical Treated Semi-Automatic Flute Laminating Machine for Carton Paperboard Lamination

Product Details:

Place of Origin:	Hebei, China
Brand Name:	liheng

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$7,750.00 - $8,600.00/sets
Packaging Details:	film,container for shipping
Supply Ability:	2 Set/Sets per Month

Contact Now

Chemical Treated Semi-Automatic Flute Laminating Machine for Carton Paperboard Lamination

Description

Type:	Laminating Machine	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Printing Shops
Showroom Location:	India, Russia	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	2 Years
Core Components:	PLC, Bearing, Motor, Gear	Condition:	New
Application:	Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles	Packaging Type:	Cartons, Film
Packaging Material:	Plastic, Metal	Automatic Grade:	Semi-automatic
Driven Type:	Electric	Voltage:	380V
Dimension(LWH):	13.5m X 2m X 2.9m	Weight:	4 KG
Warranty:	1 Year	Key Selling Points:	High Productivity
Precision:	±1MM	Color:	Customize
Min Size Of Cover Face:	320*450mm	Usage:	Box Printing Slotting Die Cutting Gluing
Power:	13kw	Keyword:	Laminating Machine
Laminating Material:	Flute Paperboard	Glue Type:	Corn Starch / Food Gluer
Machine Type:	New	Port:	Tianjin Port,China

Products Description

Main Characteristic ：

1、Tumup bridge plate is convenient for cleaning, discontinuous wate-circulating system ensures washing clean.

2、Manual feeding for top sheet

3、Flexible front register, bottom sheet is not exceeding the top sheet, and it's adjustable for the front-and-rear lamination between bottom sheet and top sheet.

4、Bottom sheet can be paperboard more than 350gsm, A/B/C/D/E/F corrugated cardboard.

5、Lntelligernt control and compacted energy-saving and controlling play from the stack of paper.
6、Using high-precision plastic block device, save glue.

Uses and characteristics：

1.Adopt PLC control system,working is more precision and stable,improved the speed, circuit faults can automatically alarm.

2. This machine adopts Taiwan servo motor, instead of the break clutch and electronic eye, realized PLC&servo single control independently.

3. Corrugated cardboard auto feeding,as fast as the surface papers’ working.

4. The machine operation is stable, surface paper with corrugated paper joint very accurate; the corrugated paper never pull ahead, surface paper’s location is easy adjust.

5. Automatic gluing,and the glue can be used circulatory,avoid glue waste.

6. Roller design scientifically ,avoid glue fly out when the speed is high.

7. Pressure rollers adopt unilateral adjustment,convenient and fast.

8. Rocker controls wash roller’s fluctuation ,easy cleaning.

9. Counter designs scientifically,easy recording the amount you have been worked.

Specification

Model	Unit	BZJ1300	BZJ1450	BZJ1600
max size of cover face	mm	1300*1300	1450*1300	1600*1300
min size of cover face	mm	320*450	320*450	320*450
economic speed	m/min	0-90	0-90	0-90
power	kw	7	7	7
overall dimension	mm	880022001700	880023501700	880025001700
weight	T	3.5	4	4.5

For more details, please click here
