Flute Paperboard Laminating Machine for Box Printing Slotting Die Cutting Gluing

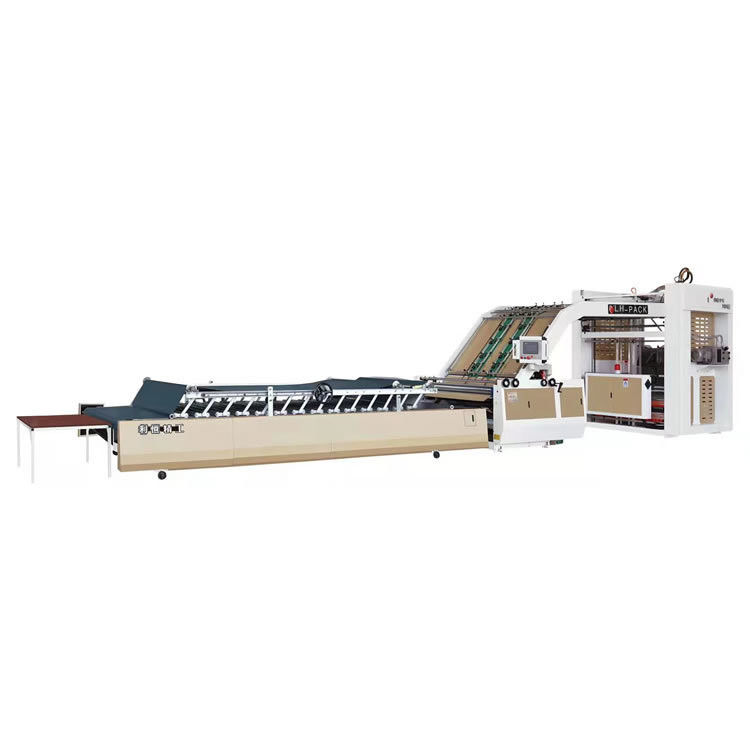

Large Image : Flute Paperboard Laminating Machine for Box Printing Slotting Die Cutting Gluing

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$20,000.00/sets >=1 sets
Packaging Details:	film,container for shipping
Supply Ability:	2 Set/Sets per Month

Contact Now

Flute Paperboard Laminating Machine for Box Printing Slotting Die Cutting Gluing

Description

Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Retail, Food Shop, Printing Shops, Food & Beverage Shops	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Bearing, Motor, Gear
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine, Box Printing Slotting Die Cutting Gluing	Voltage:	380V
Dimension(LWH):	13.5m X 2m X 2.9m	Weight:	2000 KG
Warranty:	1 Year	Key Selling Points:	Long Service Life
Keywords:	Carton Box Making Machine Corrugated	Color:	Customer's Request
Precision:	±1MM	Max Speed:	Max Speed 6000sheets/h
Power:	13kw	Laminating Material:	Flute Paperboard
Glue Type:	Corn Starch / Food Gluer	Machine Type:	New
Port:	Tianjin Port,China

Products Description

Our company manufacture professionally LH-S series of Automatic Flute Laminator used for printing and packaging industry on the cardboard to cardboard, corrugated to cardboard for fluting, the application of corrugated are A, B, C, D, E, F, N treng , three, five, seven story can work, fluted a good flatness of the paper, high accuracy.

Well-known manufacturers of genuine products are adopted in the main parts of machine, It is long life, good stability. The world's well-known brands products are adopted in electrical parts, imported bearings is adopted in the key parts, to ensure the stability of the whole performance.

Machine with good stability and accuracy of the mounted, easy use, low wear and tear, saving time, the advantages of easy maintenance.

Specification

Model	QZD-1300	QZD-1450	QZD-1600
Maximum paper size (W × L)	1300 × 1100mm	1450 × 1100mm	1600 × 1100mm
Minimum paper size (W × L)	350 × 350mm	350 × 350mm	450 × 450mm
Lamination precision	≤±1.5mm	≤±1.5mm	≤±1.5mm
Max mechanical speed	6000Sheet / h	6000Sheet / h	6000Sheet / h
The total mechanical power	12kw	12kw	13kw
General machinery	12.5m	12.5m	15m
Machine gross weight	6.8T	7.2T	8.0T

For more details, please click here

Product packaging

Recommend Products

Company Profile

Our Advantages

Certifications

Exhibition

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
