Semi Automatic Carton Paperboard Flute Laminating Machine for Corrugated Boxes 13kw

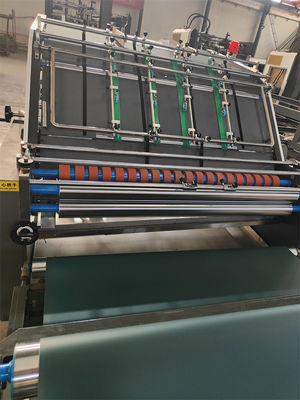

Large Image : Semi Automatic Carton Paperboard Flute Laminating Machine for Corrugated Boxes 13kw

Product Details:

Place of Origin:	Hebei, China
Brand Name:	LIHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$8,000.00/sets >=1 sets
Packaging Details:	film,container for shipping
Supply Ability:	2 Set/Sets per Month

Contact Now

Semi Automatic Carton Paperboard Flute Laminating Machine for Corrugated Boxes 13kw

Description

Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Retail, Food Shop, Printing Shops, Food & Beverage Shops	Showroom Location:	India, Russia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Bearing, Motor, Gear
Condition:	New	Automatic Grade:	Automatic
Usage:	Paper Forming Machine, Box Printing Slotting Die Cutting Gluing	Voltage:	380V
Dimension(LWH):	13.5m X 2m X 2.9m	Weight:	2000 KG
Warranty:	1 Year	Key Selling Points:	Long Service Life
Keywords:	Carton Box Making Machine Corrugated	Color:	Customer's Request
Precision:	±1MM	Max Speed:	Max Speed 6000sheets/h
Power:	13kw	Laminating Material:	Flute Paperboard
Glue Type:	Corn Starch / Food Gluer	Machine Type:	New
Port:	Tianjin Port,China

Products Description

Main Characteristic ：

1、Tumup bridge plate is convenient for cleaning, discontinuous wate-circulating system ensures washing clean.
2、Manual feeding for top sheet
3、Flexible front register, bottom sheet is not exceeding the top sheet, and it's adjustable for the front-and-rear lamination
between bottom sheet and top sheet.
4、Bottom sheet can be paperboard more than 350gsm, A/B/C/D/E/F corrugated cardboard.
5、Lntelligernt control and compacted energy-saving and controlling play from the stack of paper.
6、Using high-precision plastic block device, save glue.

Uses and characteristics：

1.Adopt PLC control system,working is more precision and stable,improved the speed, circuit faults can automatically alarm.

2.This machine adopts Taiwan servo motor, instead of the break clutch and electronic eye, realized PLC&servo single control independently.
3. Corrugated cardboard auto feeding,as fast as the surface papers’ working.
4. The machine operation is stable, surface paper with corrugated paper joint very accurate; the corrugated paper never pull ahead, surface paper’s location is easy adjust.
5. Automatic gluing,and the glue can be used circulatory,avoid glue waste.
6. Roller design scientifically ,avoid glue fly out when the speed is high.
7. Pressure rollers adopt unilateral adjustment,convenient and fast.
8. Rocker controls wash roller’s fluctuation ,easy cleaning.
9. Counter designs scientifically,easy recording the amount you have been worked.

Specification

Model	Unit	BZJ1300	BZJ1450	BZJ1600
Max size of cover face	mm	1300*1300	1450*1300	1600*1300
Max size of cover face	mm	1300*1300	1450*1300	1600*1300
Economic speed	m/min	0-90	0-90	0-90
Power	kw	7	7	7
Overall dimension	mm	880022001700	880023501700	880025001700
Weight	T	3.5	4	4.5

Product packaging

Recommend Products

Company Profile

Our Advantages

Certifications

Exhibition

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
